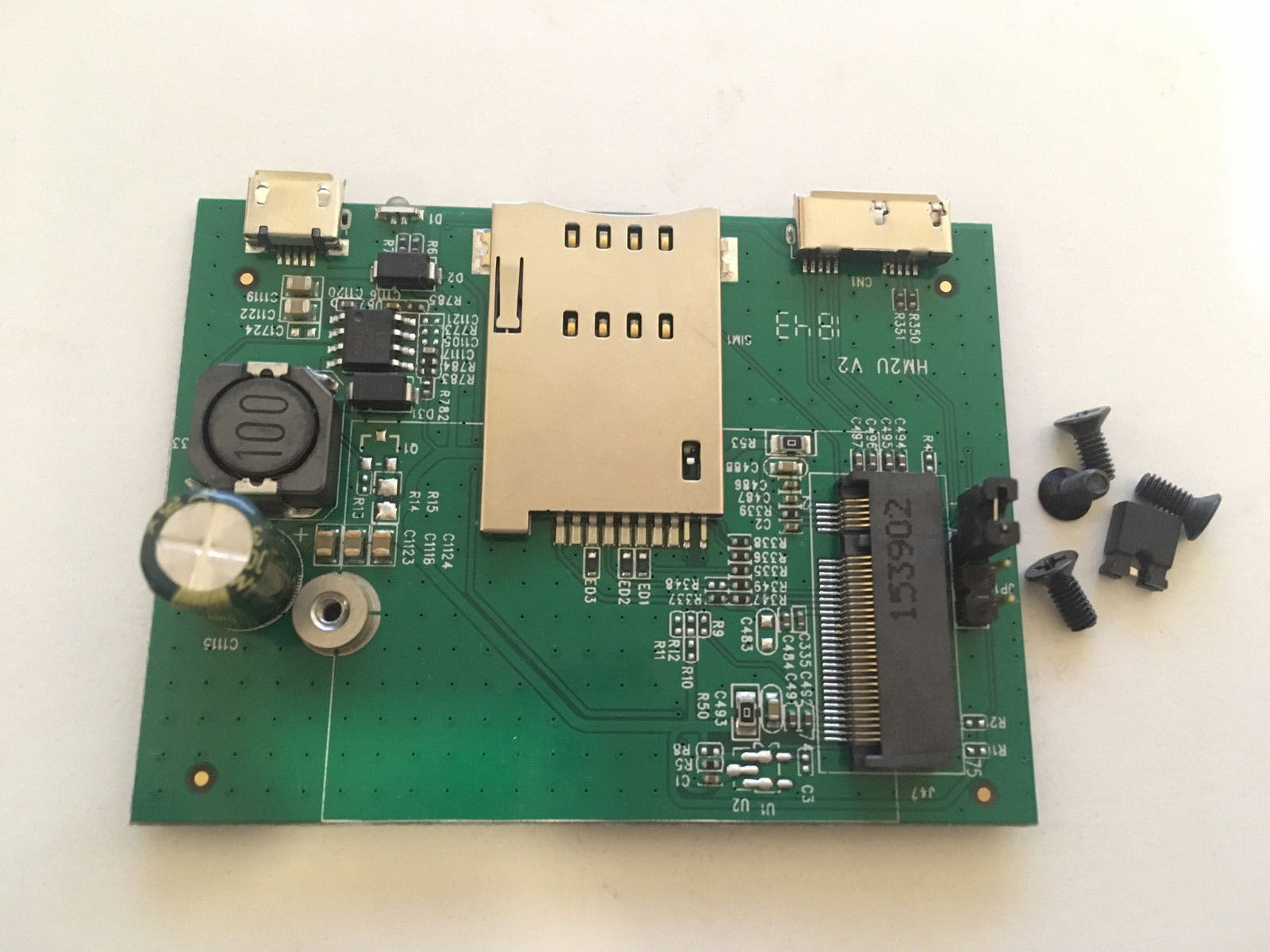

The USB3 to NGFF M.2 Key B adapter enclosure is a useful device for connecting a 4G LTE NGFF (M.2) modem card ( all Sierra Wireless EM series like EM7565, EM7455, EM73xx and Quectel EM06 EM20G EM12G behind a PC or router via a USB port.

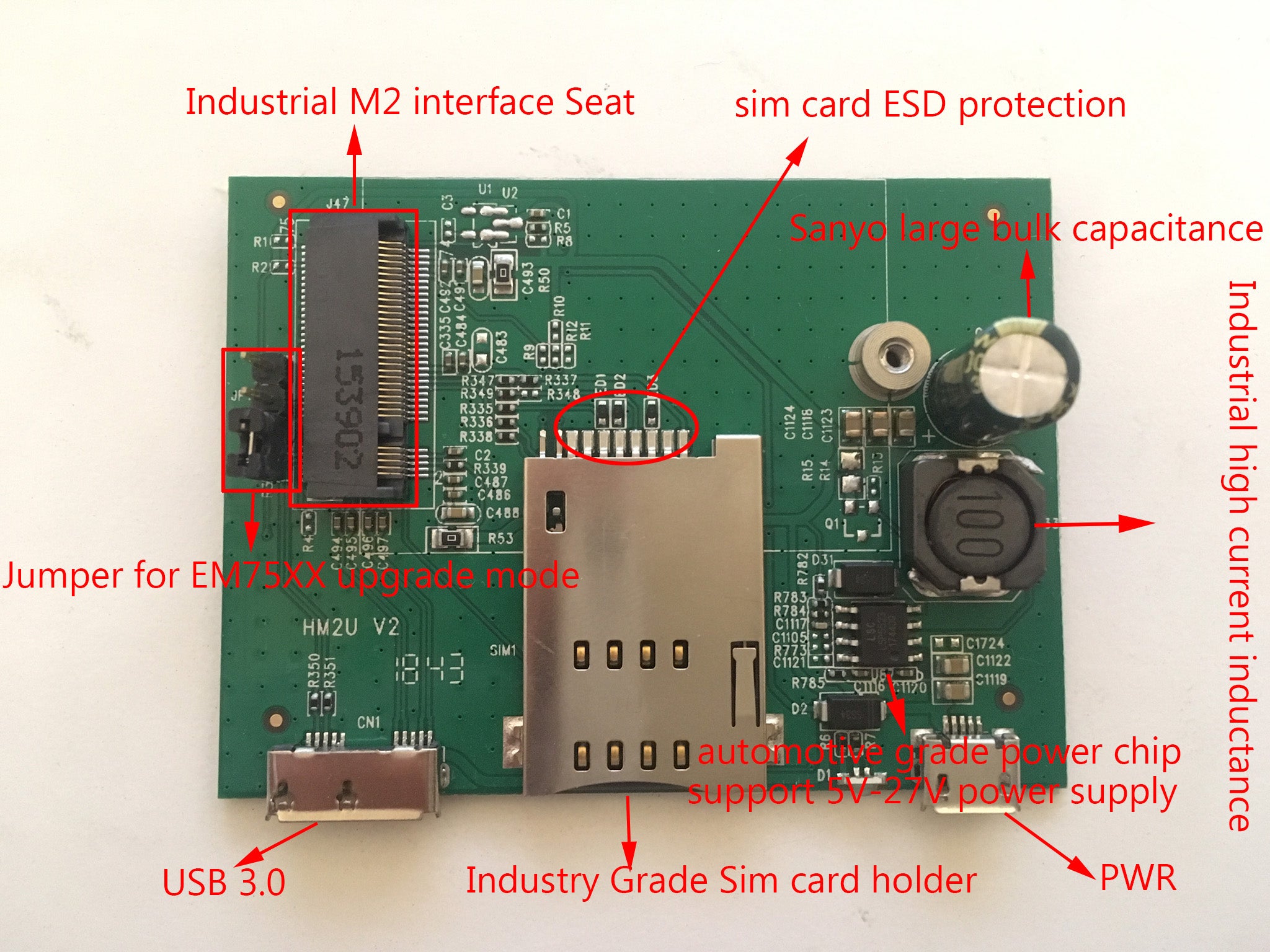

Main feature： *Full-speed USB 3.0 data speed (4.8Gbps) . *Sim card ESD protection. * High-quality current inductance and Sanyo capacity) * Additional Power supply connector Introduce. *Wide Volt input support 5V~27V *Aluminum alloy body case conduct the Heat. *Mounting Hole for Flat or Mount.
The adapter uses a full sized SIM Card . Two MHF4 to SMA female bulkhead (1.13 cables) pigtails (to connect the M.2 modem to the antennas) are included.
The USB 3.0 A Male to Micro-B Male plug provides a durable and solid connection to the enclosure. The data power cable is 40cm long .

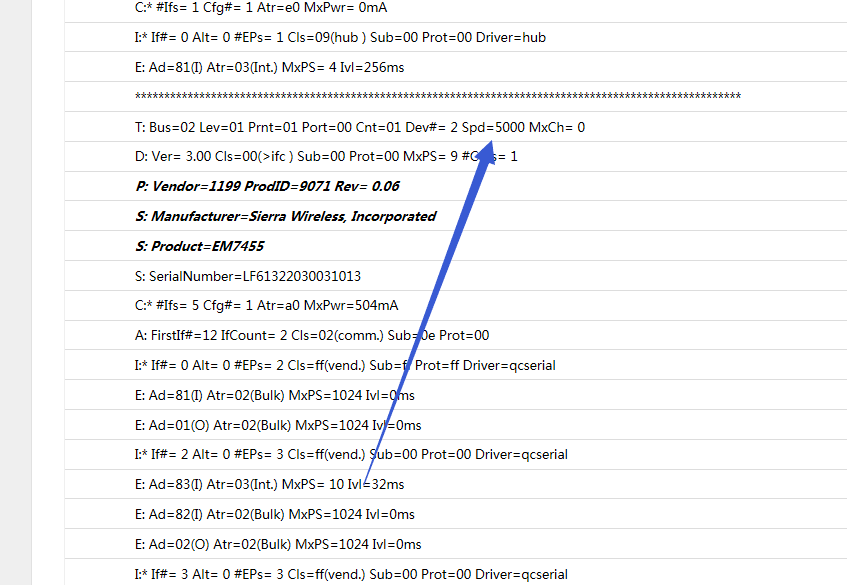

USB3.0 (4.8Gbps) boasts of providing Ten Times the capability of USB 2.0. It also provides 900mA power as opposed to 500mA utilized thru USB 2.0. Type A connectors are are backwards compatible to USB 2.0 and/or USB 1.1.
The enclosure is also equipped with an extra Micro USB power port for applications where additional (dual) power is required.
wide range of DC input 5V~27V input and 3.3V 3A output for M.2 device, use industry voltage regulator and capacitance to make LTE modem work stable.
Sim slot with ESD protection
The enclosure may be used on a desktop or mounted to a wall.
