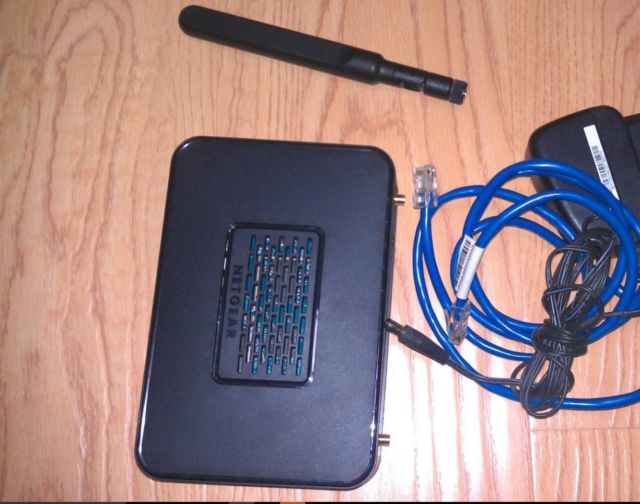

Used with original docking, Unlocked and tested, you can use it in any 900/2100 UMTS networks. 3G networks support all of Europe. Only One optional antenna include.
Ship from DE
Anytime, Anywhere Mobile Broadband Access
The NETGEAR MBR1310 offers broadband internet access at speeds up to 42 Mbps downstream and 5.76 Mbps upstream in DC-HSPA + enabled mobile networks. The NETGEAR MBR1310 Provides connectivity via a 4 port LAN, 2 USB ports and 802.11n Wi-Fi at speeds up to 300 Mbps. It is thus able To provide a resilient service via a secondary Ethernet WAN port when needed.
TR-069 ready Remote management for faster troubleshooting
OpenDNS parental control (optional) Safe and secure network
Driverless PC client install Easy setup reducing support cost
System Requirements
Compatible 3G / 3G + Mobile Service
2.4 GHz wireless adapter or Ethernet adapter and cable for each computer
Microsoft Windows 7, Vista, XP, MAC and other operating systems running a TCP / IP network
Microsoft ® Internet Explorer 6.0 or higher
Protocols
DOS protect & DDOS detect, static and dynamic routing with TCP / IP, SIP & VPN pass-through (IPsec, L2TP, PPTP), RIP v1 & v2, DMZ, DNS, DNS Proxy, Dynamic DNS, DHCP (client, relay & server), RFC 1483 static IP, classic IP, port forwarding and Wireless Distribution System (WDS), RADIUS, Qi's, TFTP Client

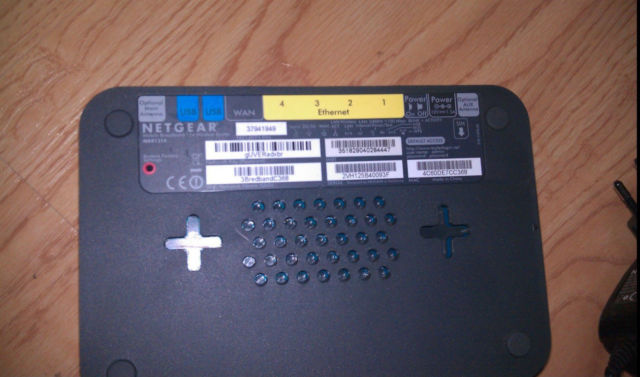

Physical Interfaces
LAN: Four 10/100 Mbps auto-sensing, Auto Uplink ™ RJ-45 ports
WAN Ports: Internal DC-HSPA + mobile broadband modem with fallback to HSPA and a 10/100 Dual WAN port
Wireless: 802.11n 2x2 MIMO access point auto rate capable to 300 Mbps
2 x USB 2.0 host ports
2 x External antenna connectors Mobile
SIM card slot
Security
Firewall: Stateful packet inspection (SPI), intrusion logging and reporting, denialservice (DoS) and DDoS protection
NAT traversal (VPN pass-through) for IPSec, PPTP and L2TP VPNs
Mode of operation: Port and Network Address Translation (PAT / NAT), static routing
IP Address Assignment: Static IP address assignment, internal DHCP server on LAN, DHCP client on WAN
Domain Filtering & Parental Control
Functions
Port range forwarding, exposed host (DMZ), DNS proxy, URL content filtering
Power Adapter
12V DC, 1.5 A; plug is localized
Optional automotive adapter is available
Physical Specifications
Dimensions: 173 x 115 x 33 mm (6.8 x 4.5 x 1.4 in)
Weight: 0.5 kg (1.1 lb)
Environmental Specifications
Operating temperature: 0 º to 40 º C
Operating humidity: 90% maximum relative humidity, non-condensing
Storage temperature: -20 ° C to 70 ° C
Storage humidity: 5% - 95%
Warranty
U.S.: NETGEAR 1-year warranty
Rest of world: NETGEAR 2-year warranty

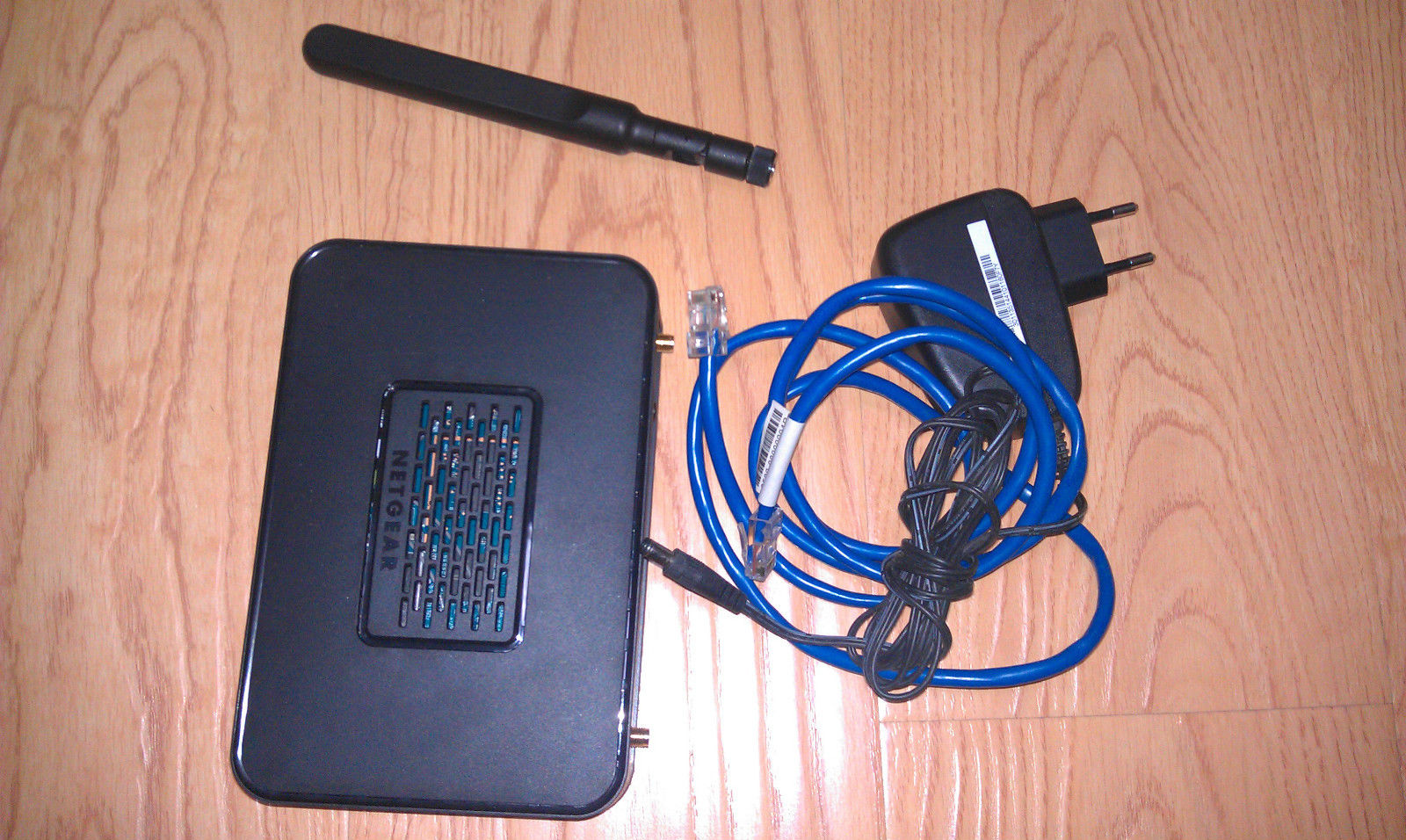

Package Contents
MBR1310 Mobile Broadband Router
Power adapter
Ethernet cable
Vertical stand
CD and quick start guide (optional)
External antennas Moblie
Compliances
CE, Wi-Fi, PTCRB
Network Management
UPnP
Remote Web Management
Smart Setup Wizard
Traffic Monitoring and Limit controls
Content Filtering: Block Sites Block Services, blocking schedule, email notification, event logs
Maintenance: Router Status Attached Devices, Backups, Set Password
Port Forwarding, Port Triggering
Statistics (by LAN / WAN port)
Link Status
Transmit / receive traffic in packets
Up Time
Poll Interval in between updates
WI-FI
WEP 64/128 bit
WPA, WPA-PSK
WPA2, WPA2-PSK
MAC address Access Control
Multi-SSID, Disable SSID broadcast
Multicast streaming
Disable SSID broadcast
WPS
WMM QoS & UAPSD
Turn Wi-Fi on or off with push button & time of day setting
Wireless Protection Setup (WPS) with PIN or push button
Wi-Fi RF Characteristics
Wi-Fi Transmit Power: 50 mW in 802.11g / n mode and 20 mW in 802.11b mode
LEDs
USB
Power
Internet
Wi-Fi
LAN
Ethernet WAN
2G/3G
Signal Quality
