Band new with original package

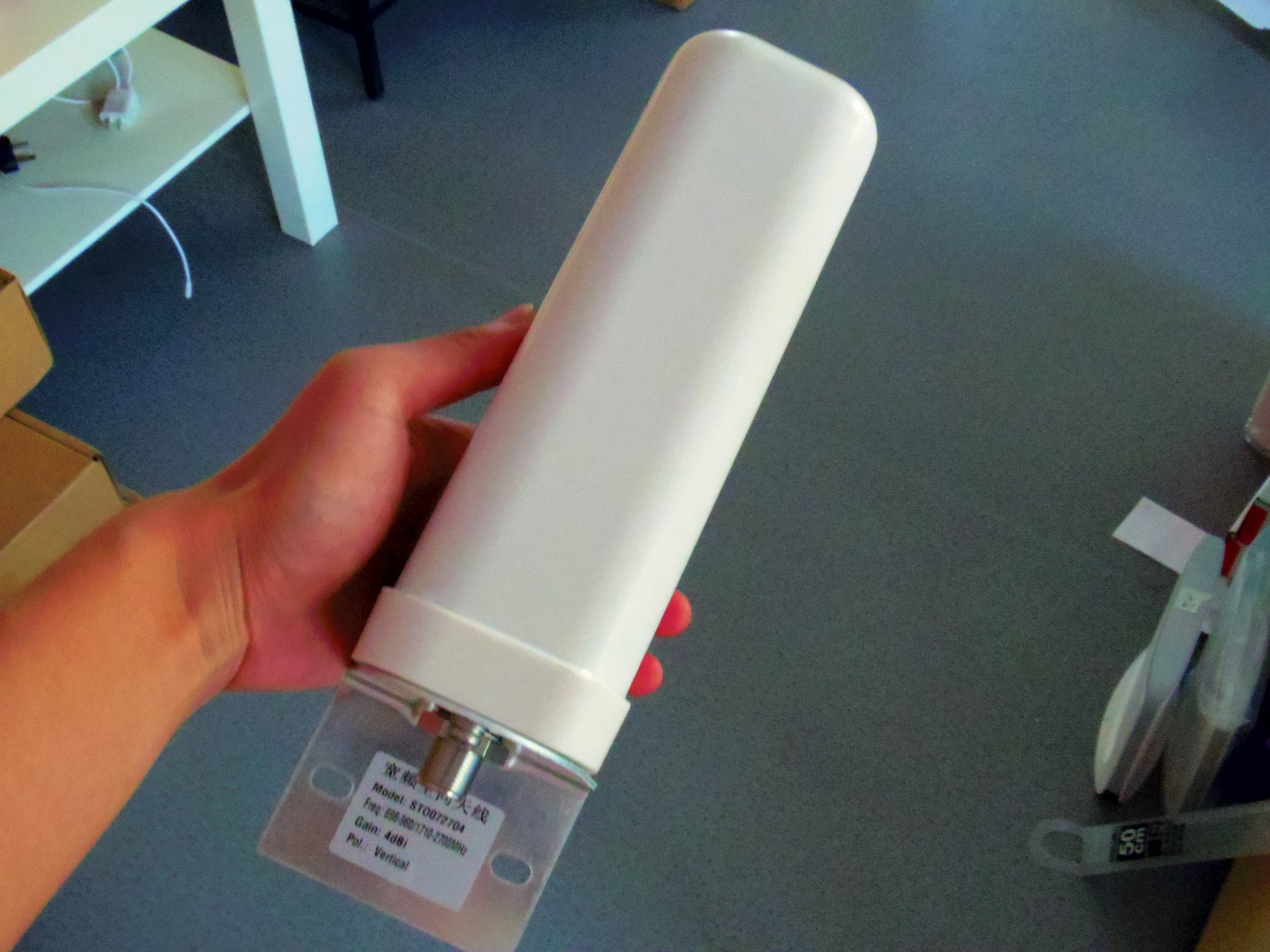

This antenna operates on all worldwide cellular bands for voice and 4G data with all carriers including AT&T, Sprint, T-Mobile, Telus, Verizon, Bell Canada, Rogers, DigiCel and more. It can be used outdoors as a building antenna for improved access to cell tower signals for indoor amplifiers and boosters. It can also be used in warehouses or other indoor spaces to provide enhanced coverage to selected areas.
This 50 ohm omni antenna is competely weatherproof and designed for either wall or pole mounting with the included multi-mount hardware. It features an integral N Female connector. It is typically used with 50 Ohm coaxial cable.
Features
- 698-2700 MHz Coverage
- Compatible With All 50 Ohm Cell Phone Boosters, Amplifiers & Repeaters
- High Gain and High Efficiency
- UV Stable White ABS Radome
- Includes Multi-Mount Kit for Pole or Wall Mounting
- All-Weather Operation
- 50 Ohm N Female Connector
Applications
- 2G, 3G, 4G and LTE Cellular Applications
- All Carrier Operation
- LTE, CDMA, GSM, UMTS, AWS
- Outdoor & Indoor Installation
- Wilson weBoost®, SureCall®, Hiboost® & Uniden Boosters
- DAS Systems, Warehouses, Stadiums
- 900MHz & 2.4GHz Wireless Video

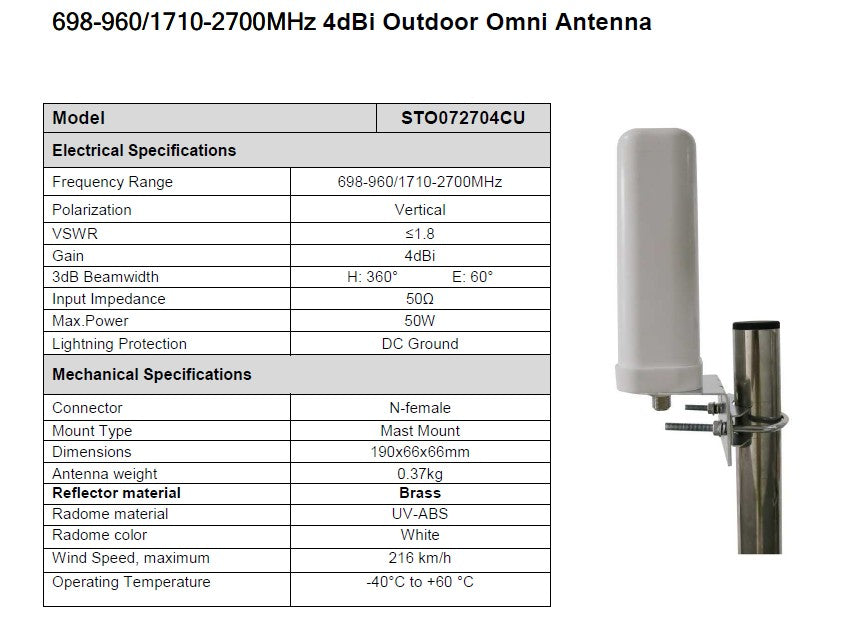

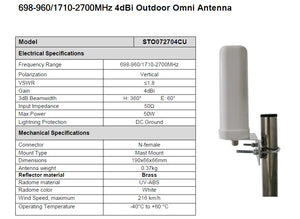

Specifications
| Frequency Range |
698-960/1710-2700 MHz |
| Gain |
4 dBi |
| Polarization |
Vertical |
| Vertical Beamwidth |
60 Degrees |
| Horizontal Beamwidth |
360 Degrees |
| VSWR |
≤1.8 |
| Impedance |
50 Ohm |
| Maximum Power |
50 Watts |
| Connector |
Integral N Female |
| Radome Material |
UV-ABS |
| Radome Color |
White |
| Dimensions |
190mmx66mmx66mm |
| Mast Diameter |
1.5 - 2.0 Inches (30 - 50 mm) |
| Weight |
0.85 Lbs. (0.39 Kg) |
| Temperature Range |
-40° - 140°F (-40° - 60°C) |
| Lightning Protection |
DC Ground |

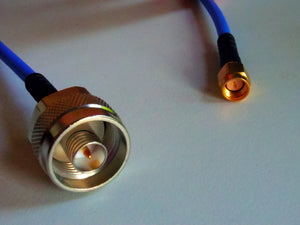

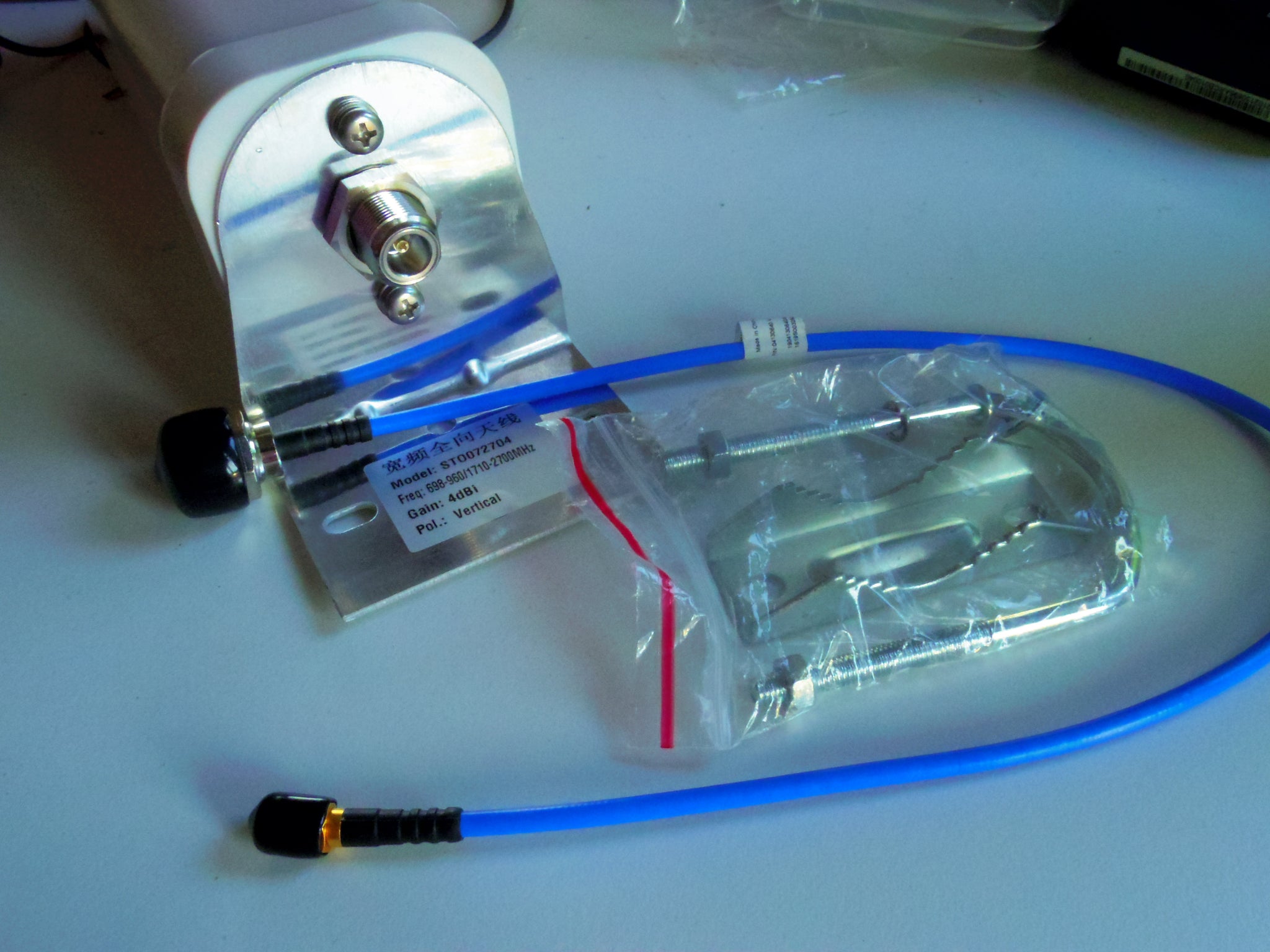

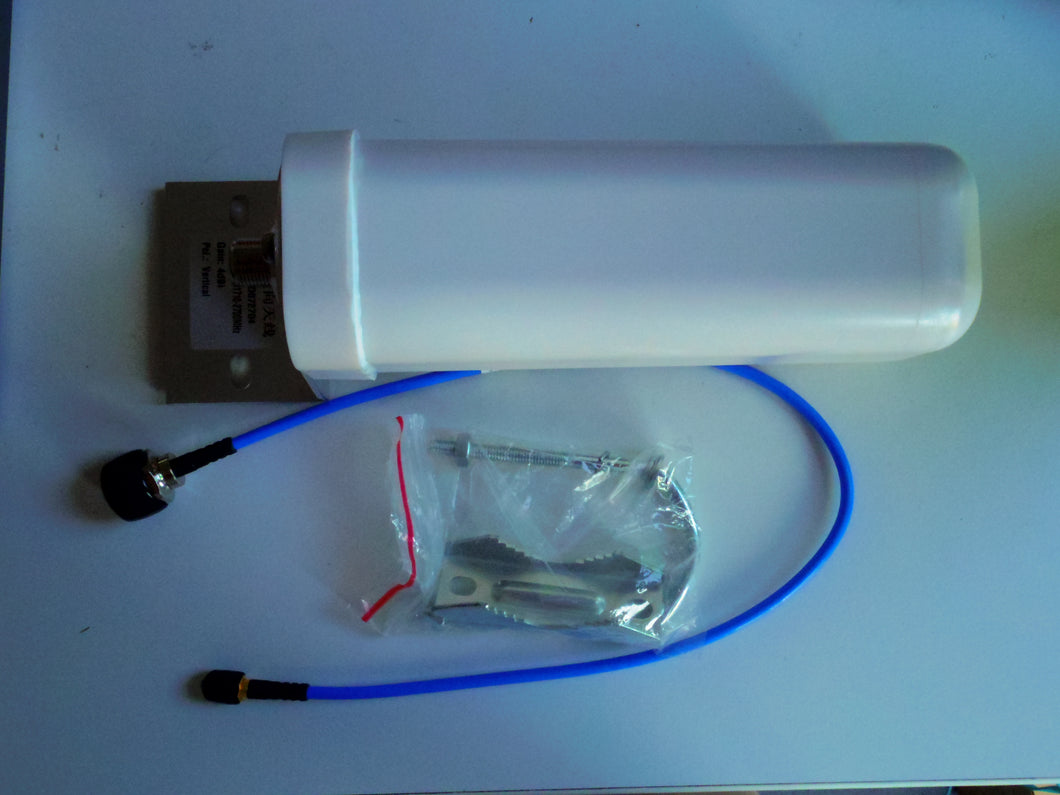

Package including 1xantenna+1x N to SMA connector Cable(50cm long)
