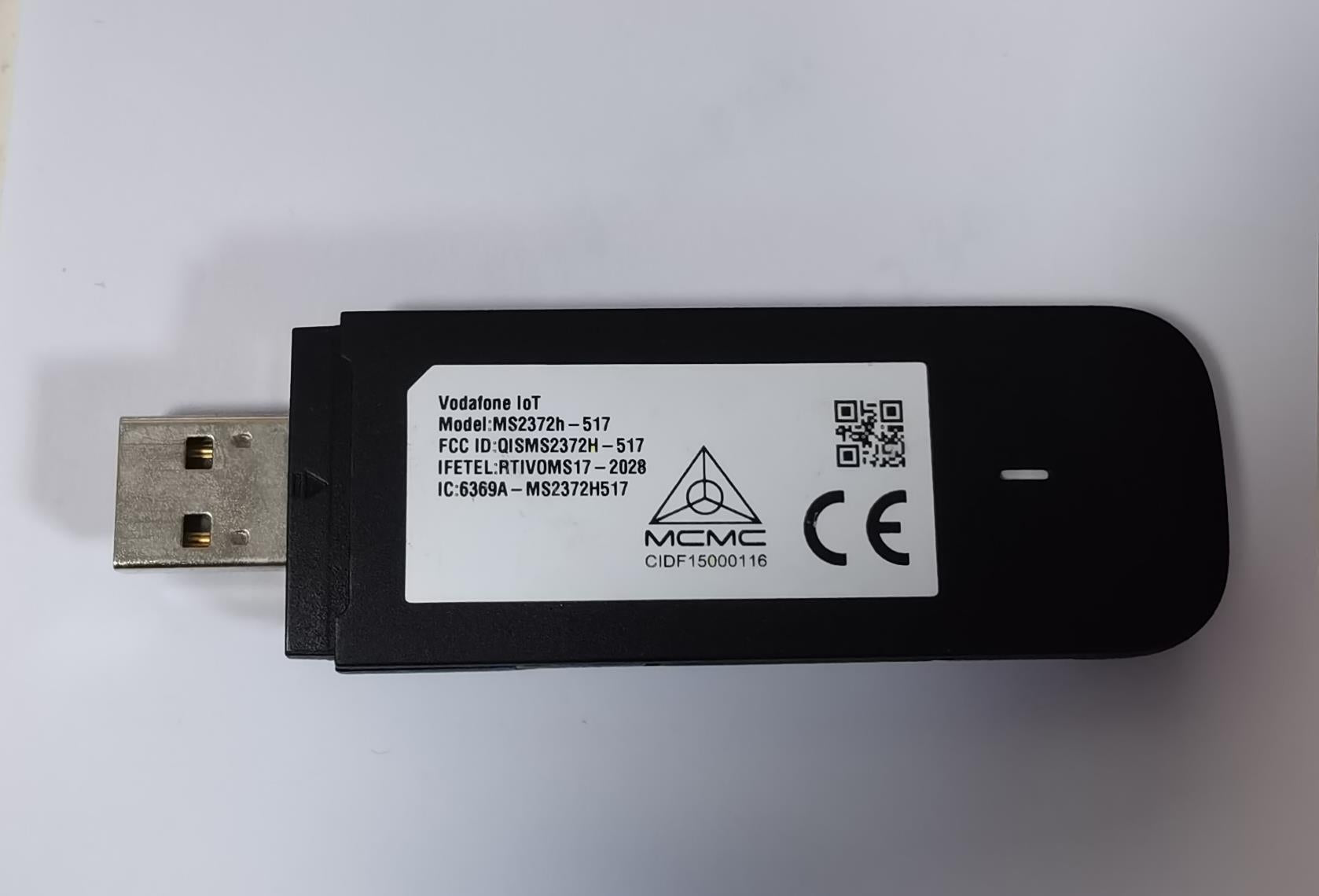

Vodafone (Huawei) MS2372h-517 design for American network, support LTE B1.2.4,5,7,12,28
design for most IOT device, good support linux or Mac system , winodws 10 auto driver.

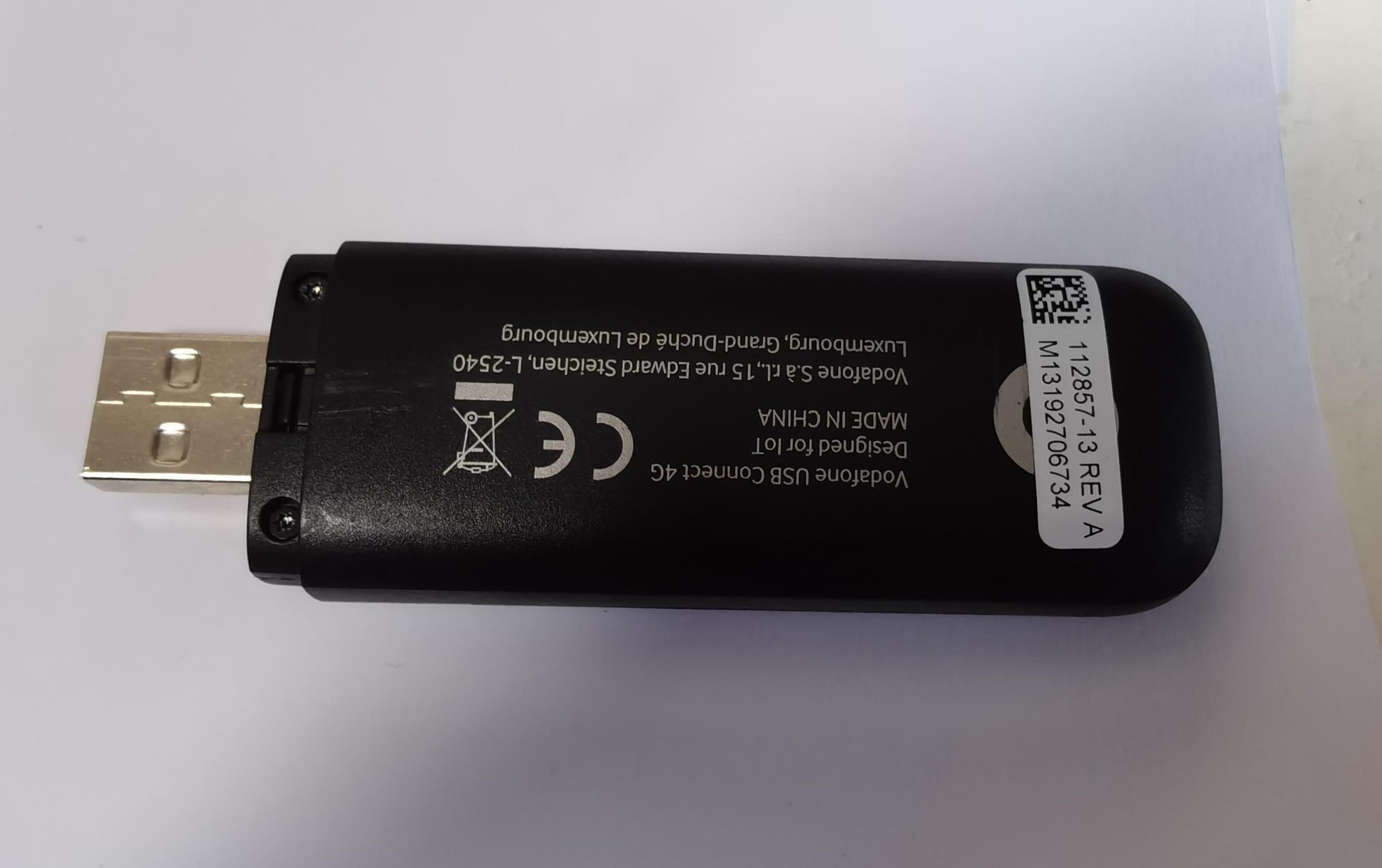

bulk order fot IOT device , have a few sccratches on surface without usb cap(if you mind pls don't order, thanks!)
General Feature
•Technical Standard
LTE: R9
HSPA+/HSDPA/ HSUPA/ WCDMA: R8
•4G Band: B1 / B2 / B4 / B5 / B7 / B12 / B28
•3G Band：B1 / B2 / B4 / B5
•2G Band: 850/900/1800/1900
•Output Power :
LTE 23dBm (Power Class 3)
HSPA+/HSUPA/HSDPA/WCDMA +24dBm (Power Class 3)
• Sensitivity :
LTE: Compliant with 3GPP TS 36.101 (R9)
WCDMA/HSPA/HSPA+: Compliant with 3GPP TS 25.101(R8)
•Power supply：5V / 700mA
•Temperature range
Operating: –20℃ to +55℃ (*)
Storage: –40℃ to +70℃
• Dimensions: 88 mm x 28 mm x 11.5 mm
• Weight: <50g
•Antenna：
Built-in antenna, supporting diversity for 3G/4G
•LED: Indicating the network signal
•AT commands
3GPP TS 27.007 and 27.005
Huawei extended AT command
• Supported OS: Linux (kernel version equal to or above 2.6.21)
