lot of 4 CISCO LTE-ANTM-D antenna internal PCB fit for 5Gnr & LTE good for DIY

Regular price ~~$50.00~~ $10.00 Sale

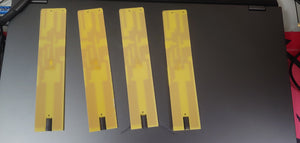

4pcs of cisco lte-antm-d antenna internal pcb, fit for 5Gnr Sub-6G (N78 N41）and LTE frequency, DIY only , need soldering any connector,ship with tracked parcel

Overview

The LTE-ANTM-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G Long Term Evolution (LTE) and Long Term Evolution Advanced (LTEA) Network Interface Modules (NIMs), 4G and 4G LTE Enhanced High-Speed WAN Interface Cards (EHWICs) as well as Cisco 4G and 3G Integrated Service Routers (ISRs).

The LTE-ANTM-D antenna is marked with a dual green band to indicate that it supports Cisco LTEA routers and modules.

This antenna has the following features:

■Support for frequencies of 698-960, 1448-1511, and 1710-2690 MHz. 3300MHz-3800MHz

■Standalone antenna peak gain of less than 3.7 dBi in the supported frequency bands.

Specifications

Operating Frequencies	698-960 MHz 1447-1511 MHz 1710-2690 MHz 3300-3800MHz
Polarization	Vertical, linear
Nominal Impedance	50 Ohms
Peak Gain	2.0 dBi (698-960 MHz) 2.8 dBi (1447-1511 MHz) 3.7 dBi (1710-2690 MHz) 3.7dBi (3300-3800MHz) Note: The standalone antenna peak gain numbers are provided above. When you install an antenna close to metallic objects or directly on chassis, the peak gain will be affected. We recommend that you keep antennas away from very large chassis and metallic objects. You can install antennas directly on smaller or medium size chassis. In all cases, we recommend that you keep different antennas away from each other and from various known sources of electromagnetic radiation.
VSWR	≤ 2.5:1 (698-960 MHz) ≤ 2.5:1 (1447-1511 MHz) ≤ 2.0:1 (1710-2690 MHz) ≤ 2.0:1 (3300-3800 MHz)
Maximum RF Input Power	5 W
DC Power	No DC power required for LTE-ANTM-D antenna operation.
Dimensions	(153L x 32Wx 0.8D mm)
Weight	10 grams
Efficiency	LTE-ANTM-D antennas have high standalone efficiency, and maintain high efficiency when directly installed on front plate of a small or medium size Cisco router. However, depending on chassis size and a variety of other electromagnetic considerations, installing the antenna directly on the chassis is not always recommended.
Temperature Range	-30°C to + 70°C (Operating) -40°C to + 85°C (Storage)
