H721 V7 add new switch to support EM919x EM7690 working at USB mode
design for 5Gnr M.2 product , we have use new power IC to provide high power for 5G Modem (Max 10W)，add new protection for power output ,sim esd, Industrial voltage regulator wide range input 5V ~ 27V, Solid capacitor be adopted
1x M.2 (NGFF) 3.7V 3A max for 5G M.2 Modem work at USB3.0 mode
1x Minipcie 3.7V 3A max for LTE Modem work at USB2.0 Mode
2x Minipcie slot for WIFI card

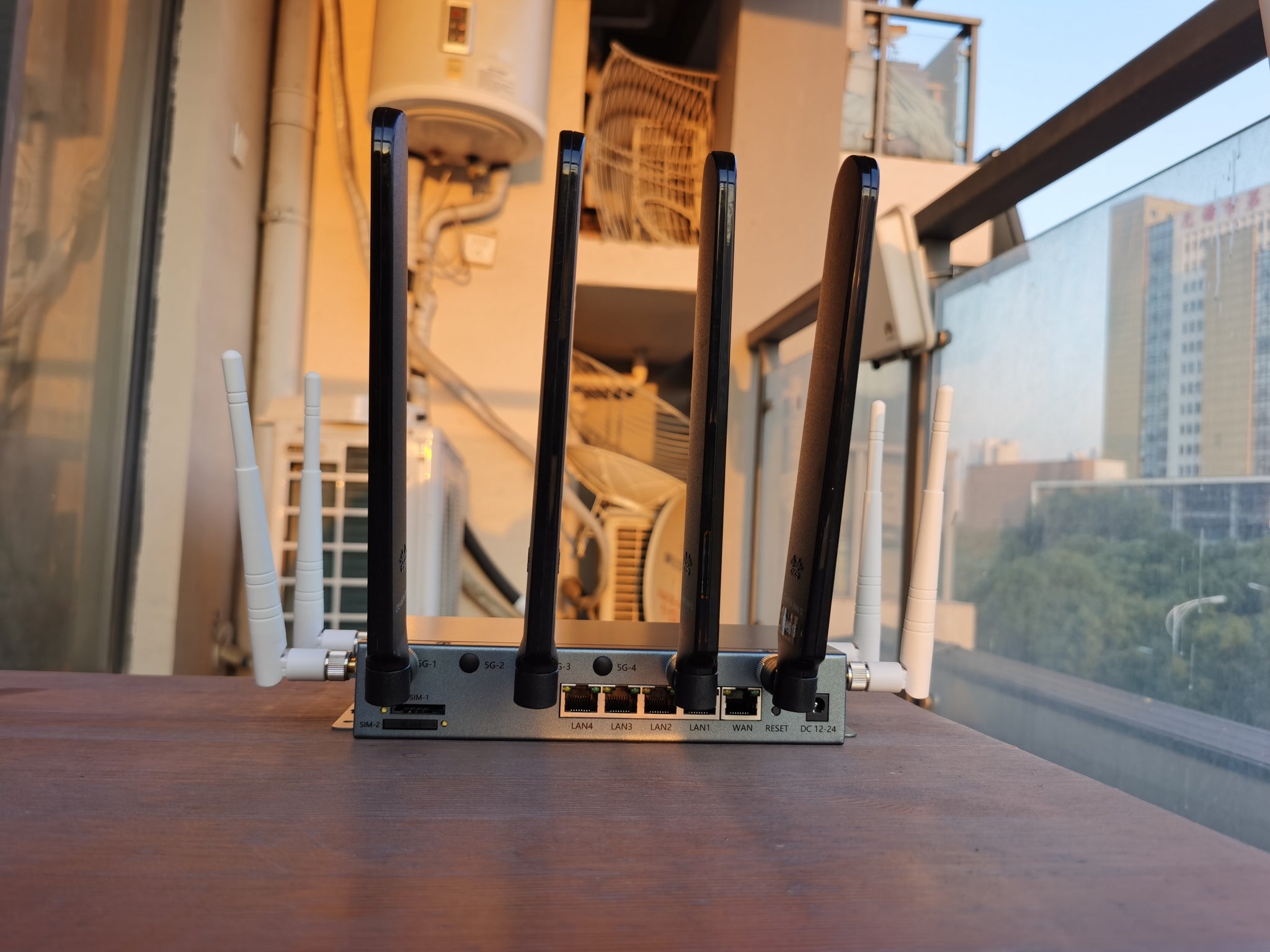

4 *lan+1 * wan 10/100M/1000M RJ45 port
14 * led for display more information.
Metal case for heat conduction
13 * antenna hole for future use

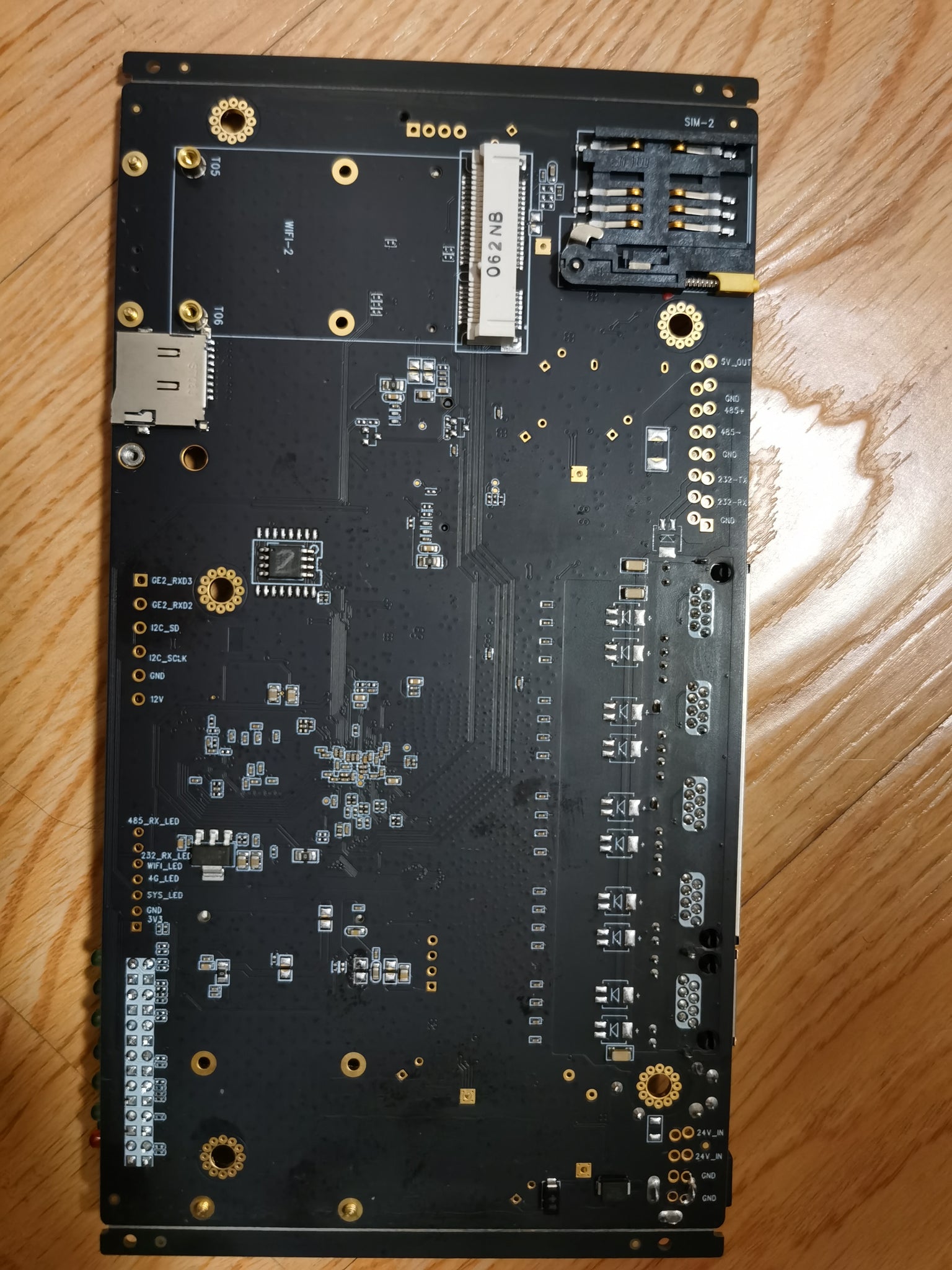

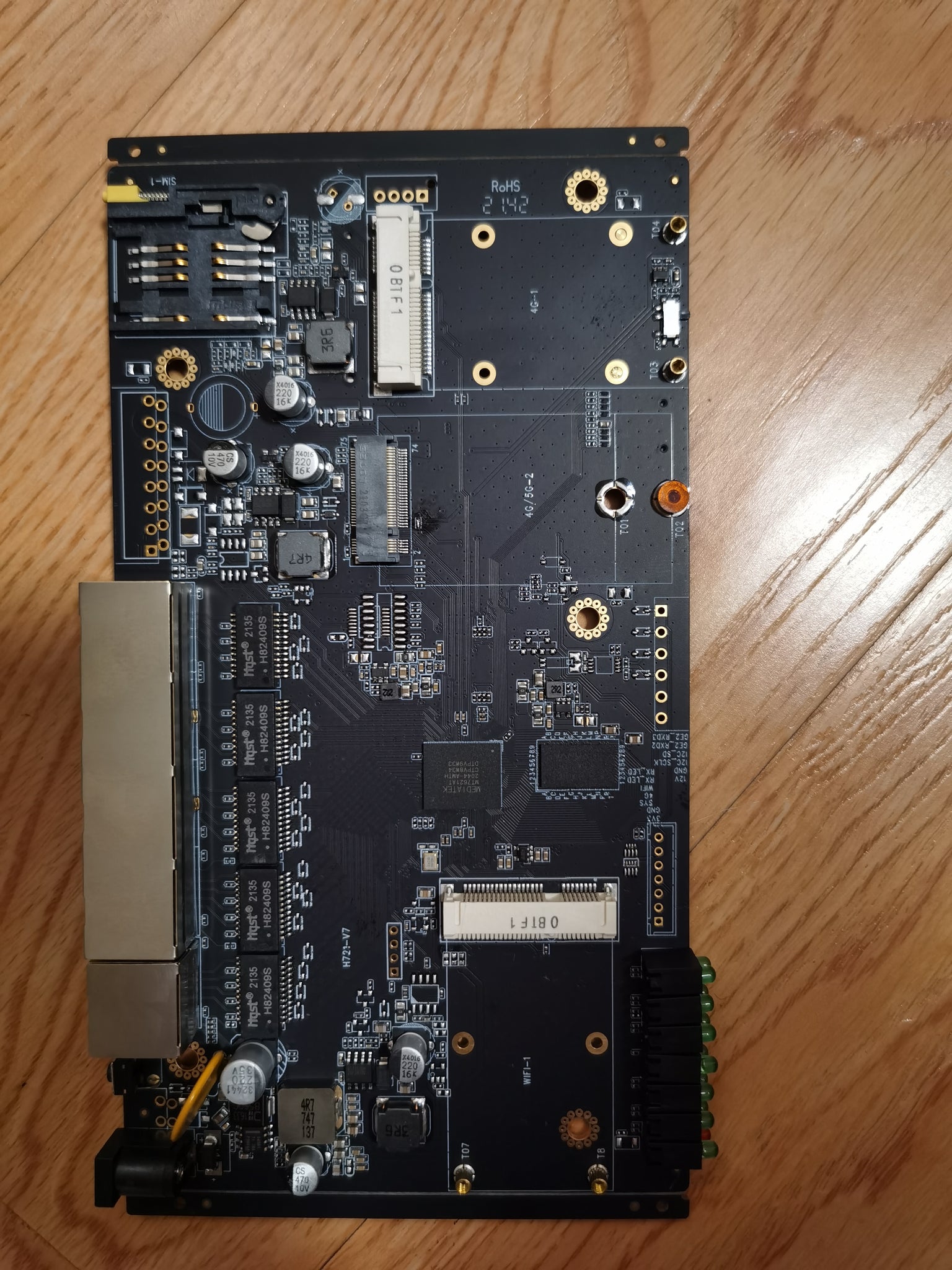

Hardware: MTK7621A Flash16M / RAM256M(CPU Cores:2 ;CPU MHz:880)
Software:
we use ROOTer (https://www.ofmodemsandmen.com/) firmware. Daiyman Has made firmware for this board.
support most ROOTer function, support most LTE modem drivers(sierra wireless,Quectel,Huawei,ZTE,Meig)
has tested:
sierra wireless EM9190
Quectel RM500Q RM502Q EC25E EC25A EC20 EM06 EM12
sierra wireless EM(MC)7355 EM(MC)7455 EM7430 EM7565 EM7511 EM919x
MeiG SLM750 (TA)
ZTE ME3760 ME3860
Add 9K and 10K drivers for all QCA and AR wifi card router has pre-flashed BREED (https://www.breed.hackpascal.net) and latest ROOTer firmware
H721 has been added to o openwrt master https://github.com/openwrt/openwrt/pull/5076/files you can compile your own firmware
firmware download address
rooter firmware https://drive.google.com/file/d/1c-5sC4A2iE1KfJ_9lw1vO2Uw3mWsbBW6/view?usp=sharing
test immortalwrt firmware https://github.com/openwrt/openwrt/pull/5076/files
video on youtube:
https://youtu.be/whKcn4SFMKQ
packing list:
router board*1;
router body case*1
Ipex4 to sma cable *4
ipex to sma-RP cable *3
Transystem TWL-2301 or TWL103 2.4G 3*3 wifi card
12V 2A power adapter*1
we ship with UPS saver normally 5~7 working days worldwide, declare as the sample.
