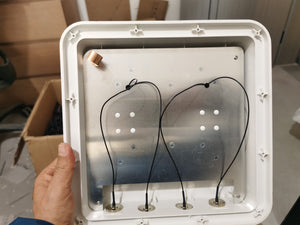

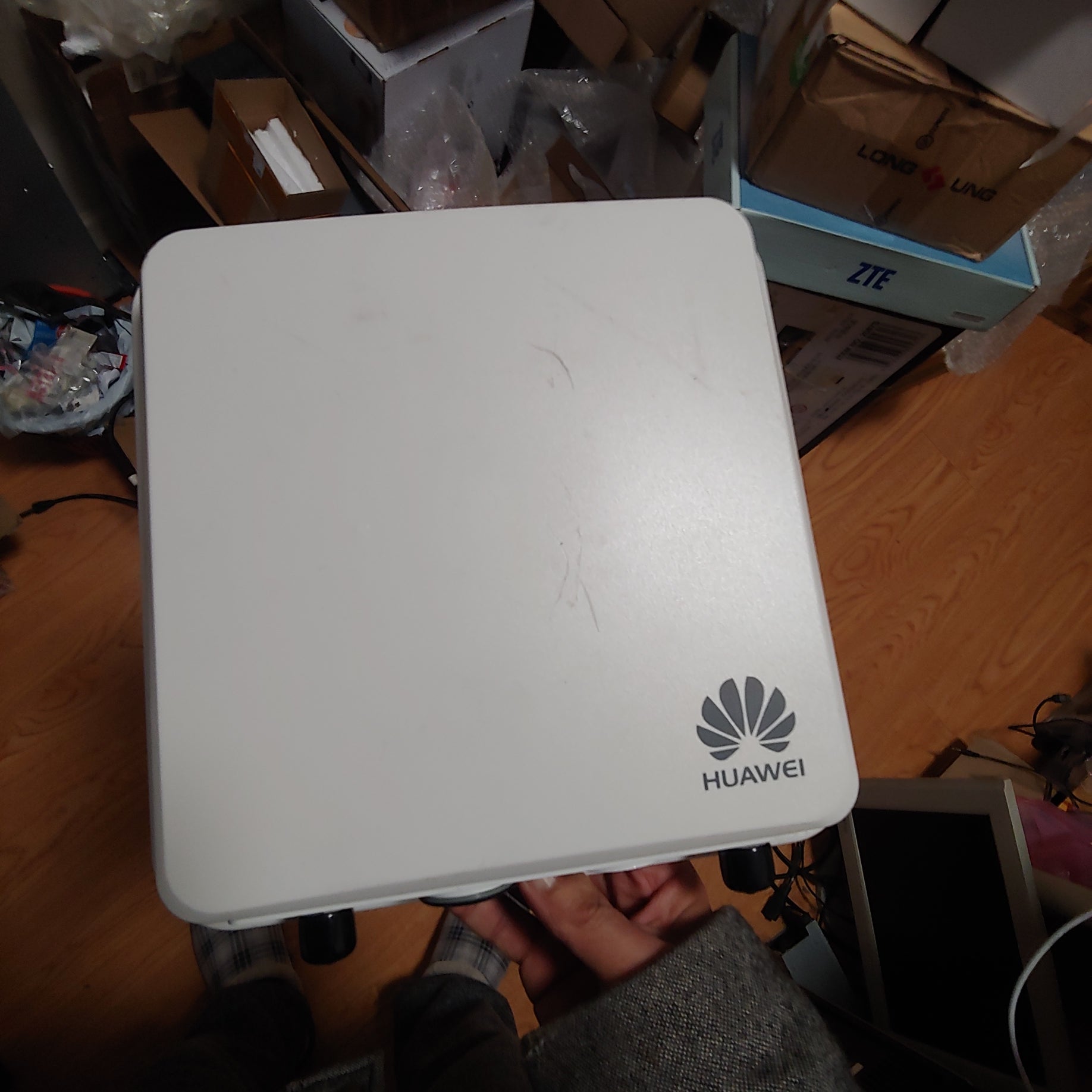

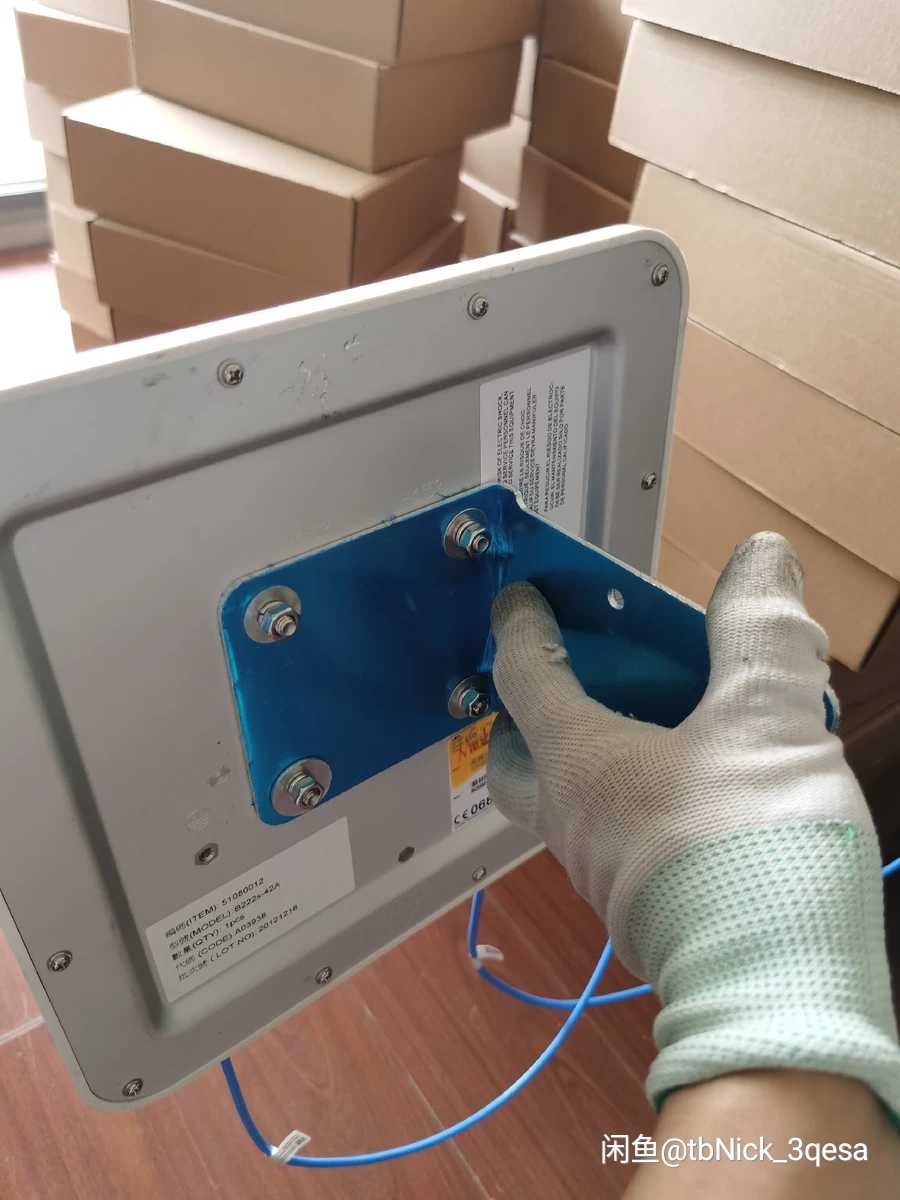

Reuse Huawei B222s-42A enclosure,

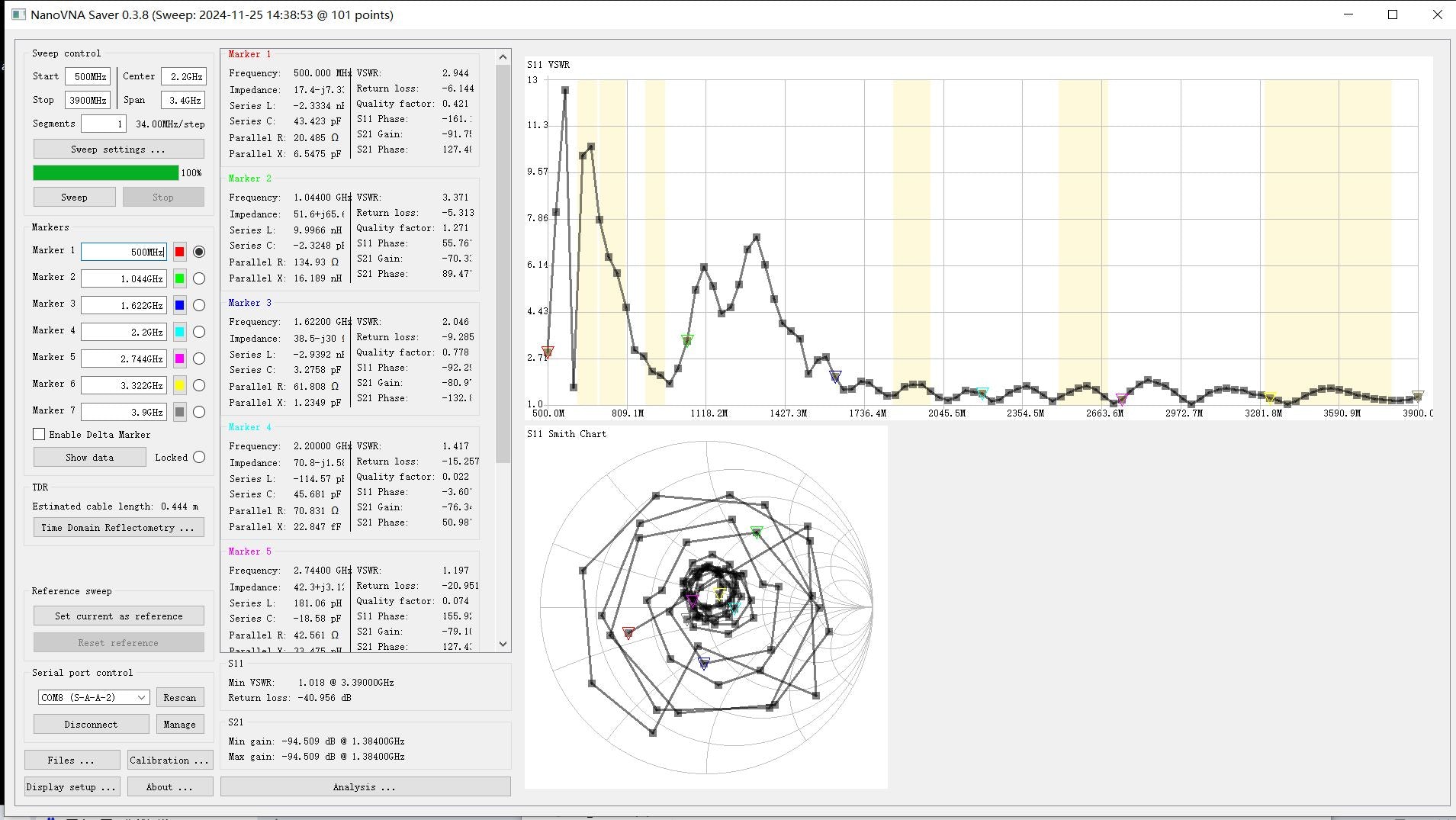

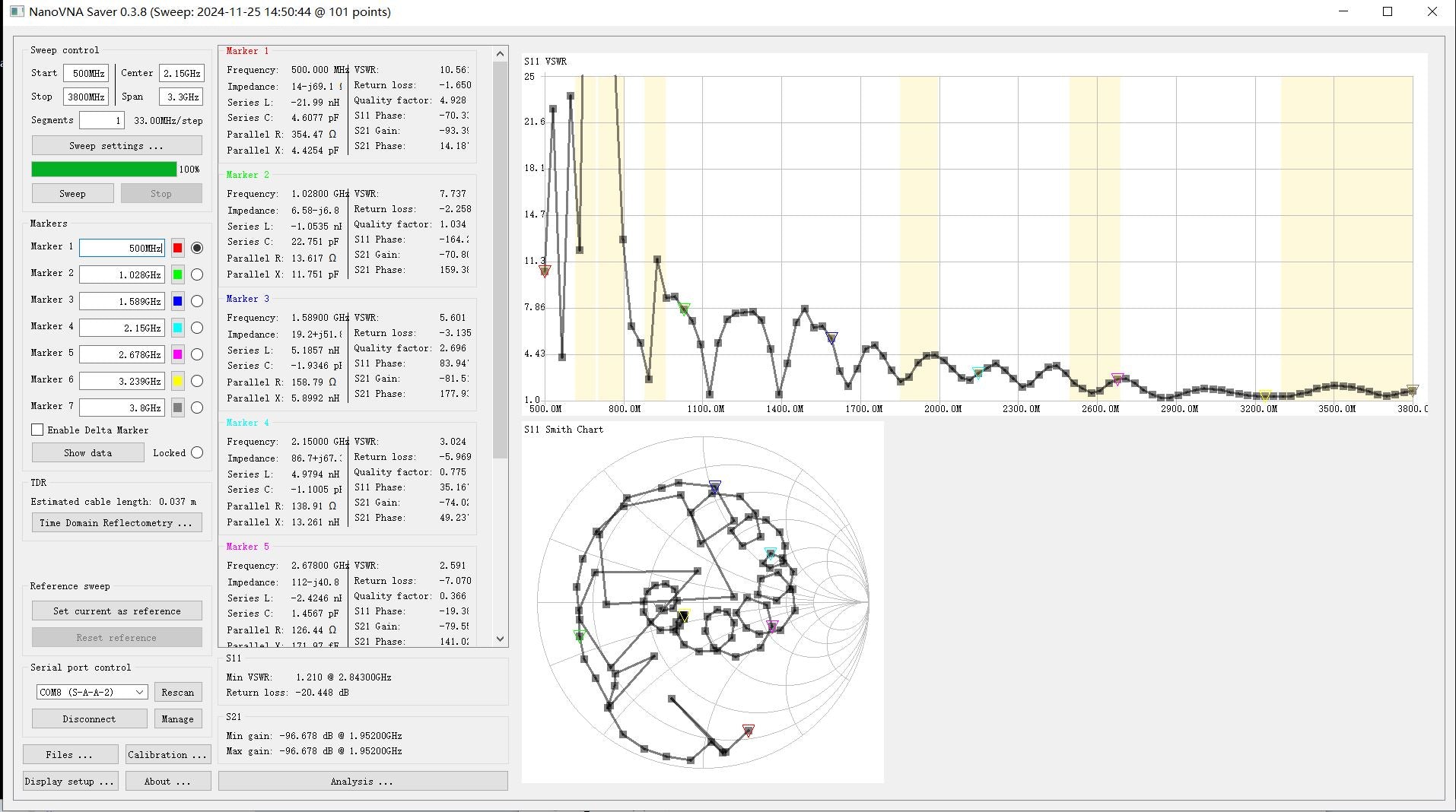

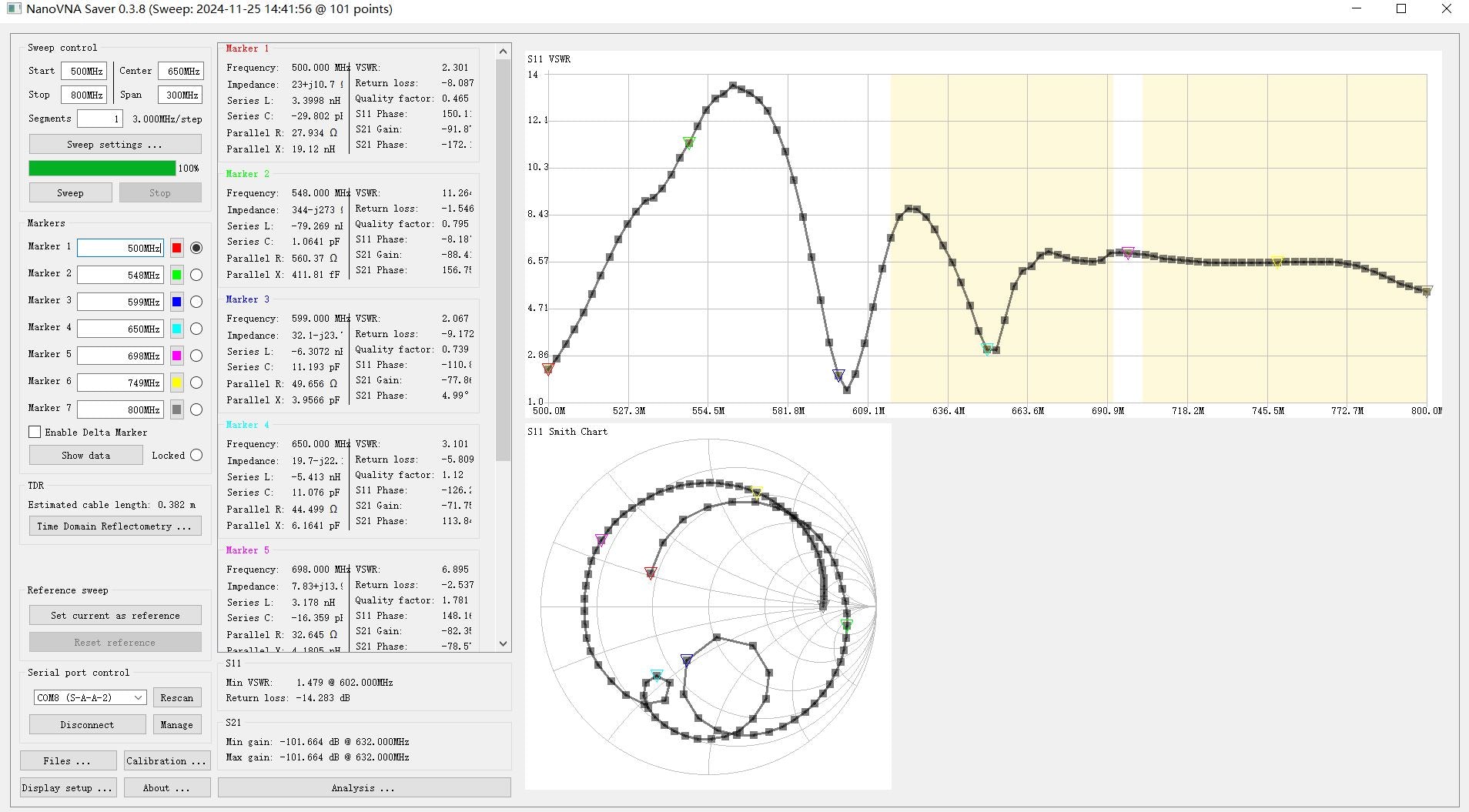

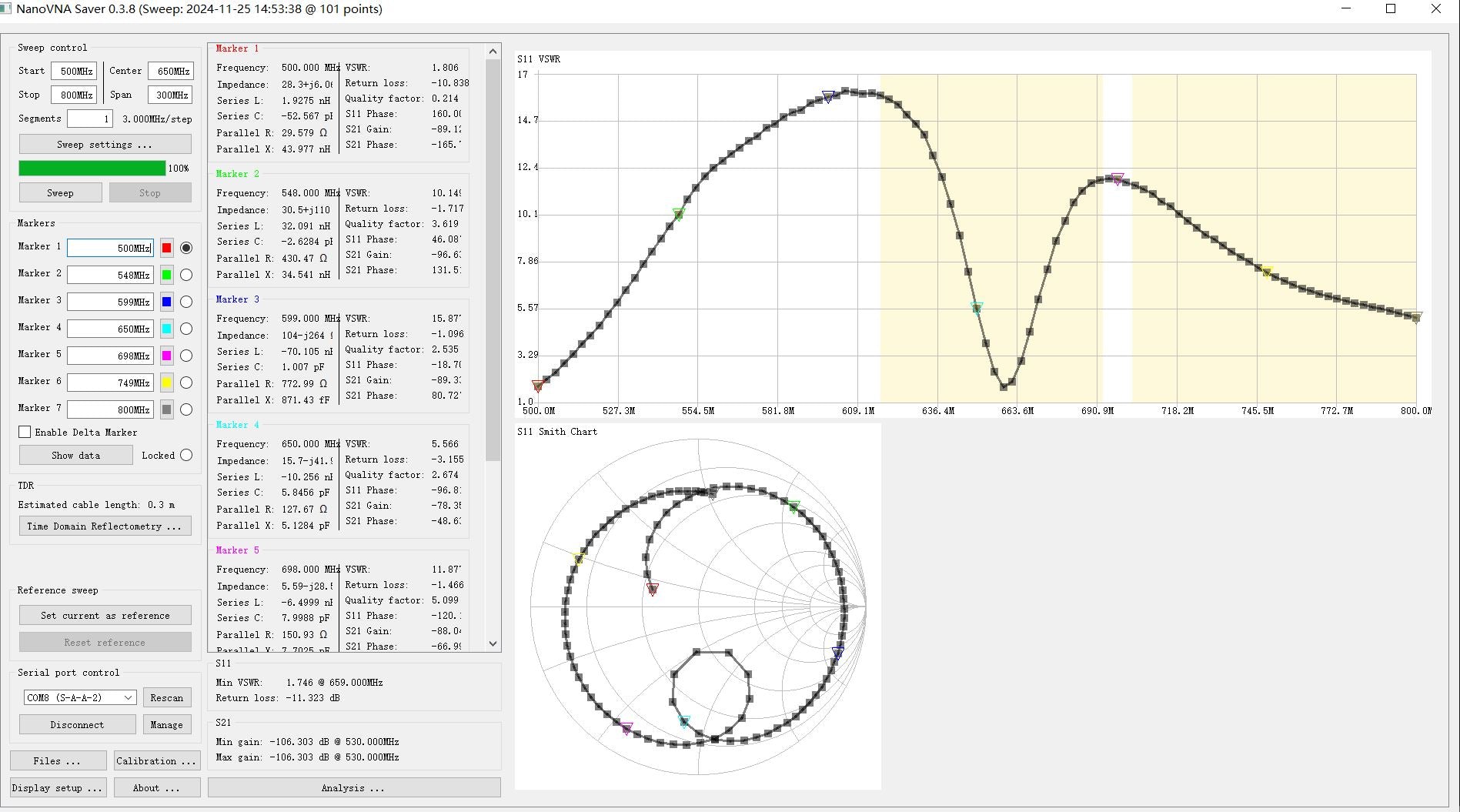

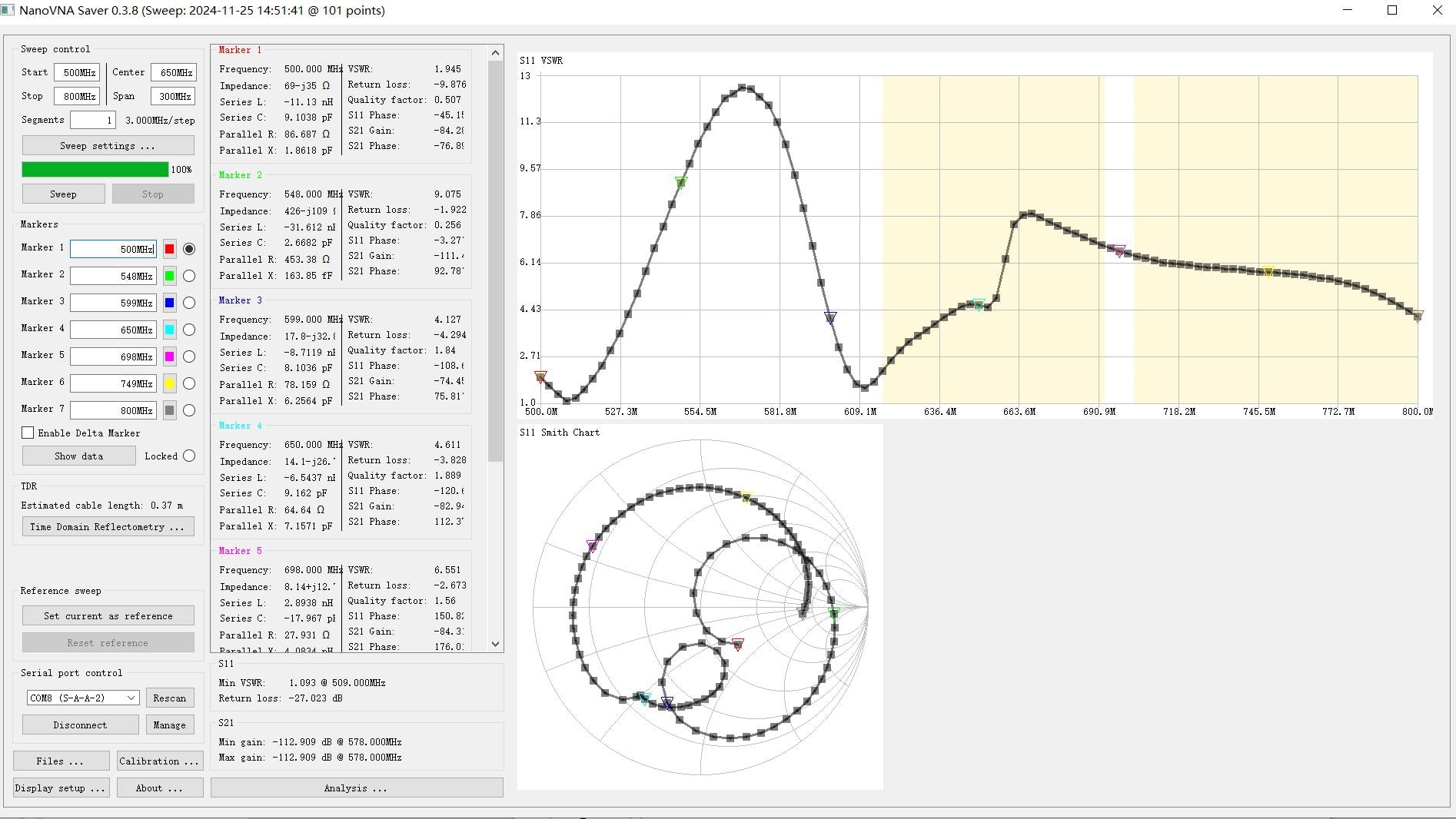

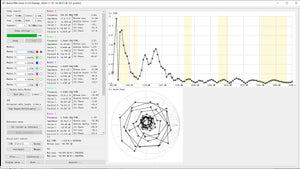

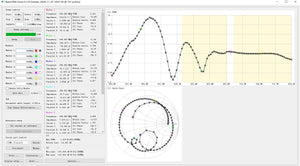

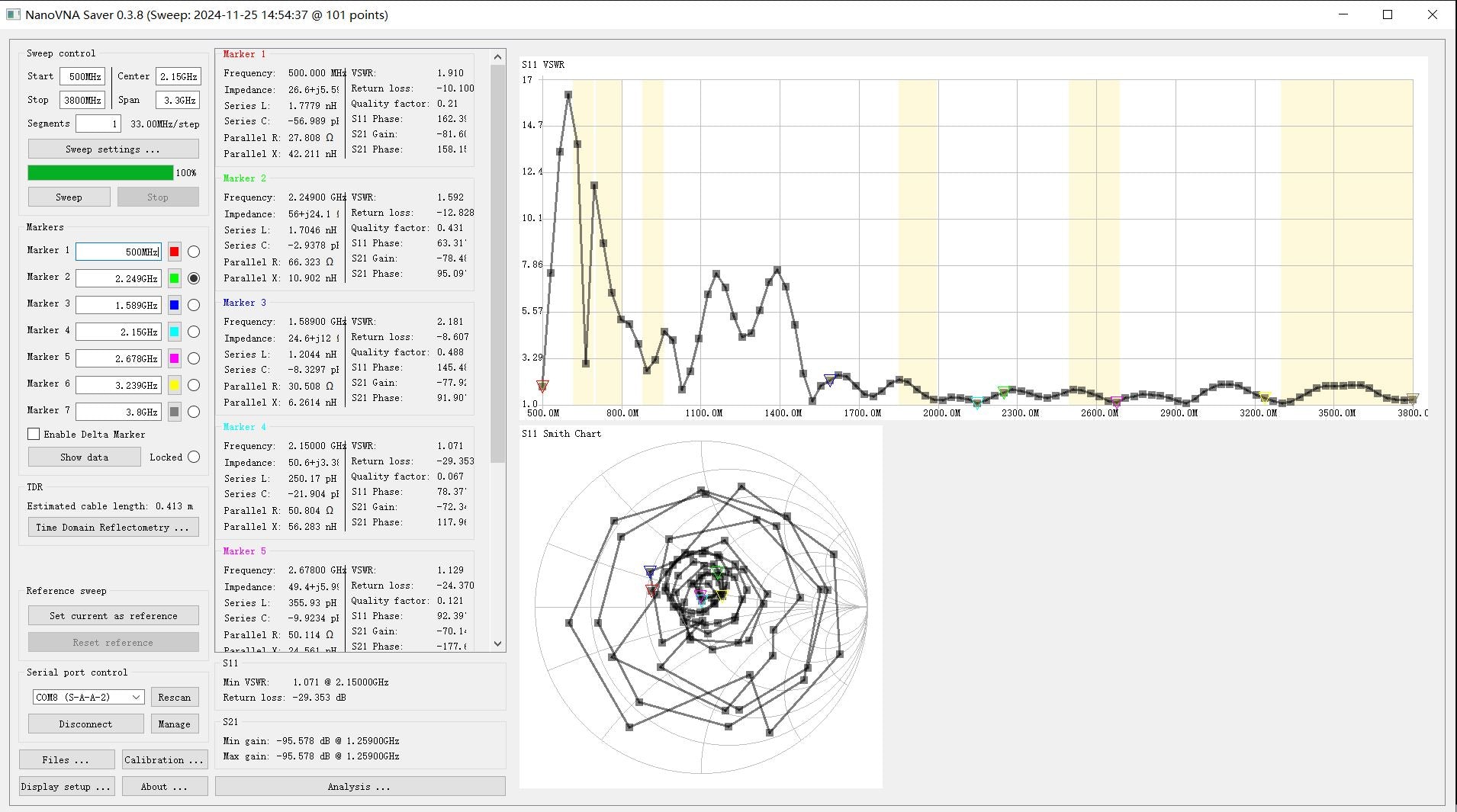

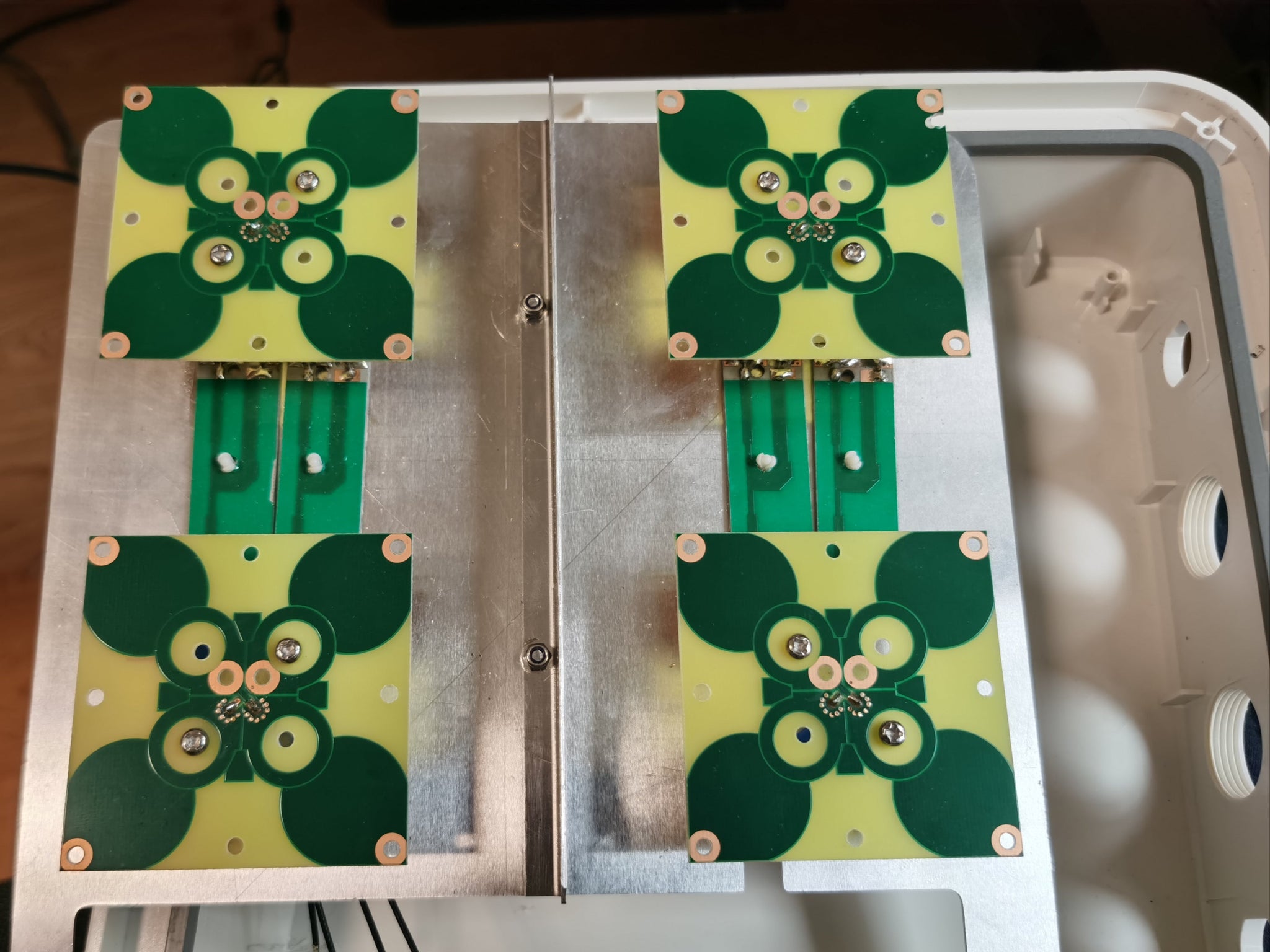

antenna is 4x4 , main antenna gain at 1710-2700$3300-3800MHz, but still support 700MHz N71,you can see the vswr spce at picture,

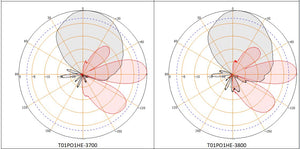

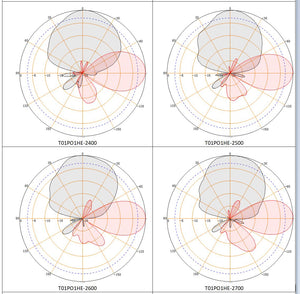

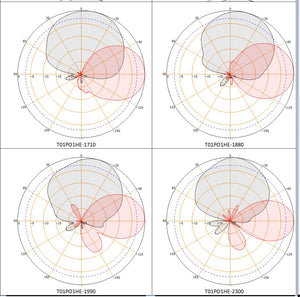

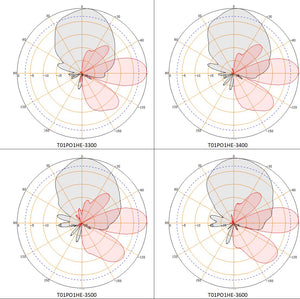

| Unit beam radiation performance |
| Unit beam downtilt ：01° |
|
| 测试项目 |
指标要求 |
Freq (MHZ)
|
Port |
| PO1 |
| HHorizontal lobe width |
50±15 ° |
1710 |
75.84 |
| 水平面波瓣宽度(3dB)
|
1880 |
69.39 |
| |
1990 |
61.49 |
| |
2300 |
58.99 |
| |
2400 |
57.82 |
| |
2500 |
48.21 |
| |
2600 |
59.05 |
| |
2700 |
58.5 |
| |
3300 |
49.96 |
| |
3400 |
46.47 |
| |
3500 |
51.17 |
| |
3600 |
60.18 |
| |
3700 |
57.86 |
| |
3800 |
50.54 |
| Horizontal front to rear ratio |
>15dB |
1710 |
21.56 |
| 水平面前后比 |
1880 |
20.12 |
| |
1990 |
21.95 |
| |
2300 |
24.16 |
| |
2400 |
18.92 |
| |
2500 |
23.36 |
| |
2600 |
21.84 |
| |
2700 |
21.42 |
| |
3300 |
18.73 |
| |
3400 |
18.51 |
| |
3500 |
17.49 |
| |
3600 |
16.51 |
| |
3700 |
19.44 |
| |
3800 |
17.63 |
| |
>20 ° |
1710 |
48.34 |
| Vertical lobe width |
1880 |
47.24 |
| 垂直面波瓣宽度(3dB)
|
1990 |
36.95 |
| |
2300 |
34.08 |
| |
2400 |
33.29 |
| |
2500 |
31.06 |
| |
2600 |
30.14 |
| |
2700 |
30.04 |
| |
3300 |
23.56 |
| |
3400 |
22.34 |
| |
3500 |
22.21 |
| |
3600 |
21.71 |
| |
3700 |
20.61 |
| |
3800 |
19.7 |
| Gain |
>10dBi |
1710 |
10.06 |
| 增益 |
1880 |
10.59 |
| |
1990 |
10.98 |
| |
2300 |
11.67 |
| |
2400 |
11.64 |
| |
2500 |
12.45 |
| |
2600 |
12.18 |
| |
2700 |
11.97 |
| |
3300 |
12.17 |
| |
3400 |
12 |
| |
3500 |
11.59 |
| |
3600 |
11.33 |
| |
3700 |
11.62 |
| |
3800 |
12.04 |
size:30x30x10CM

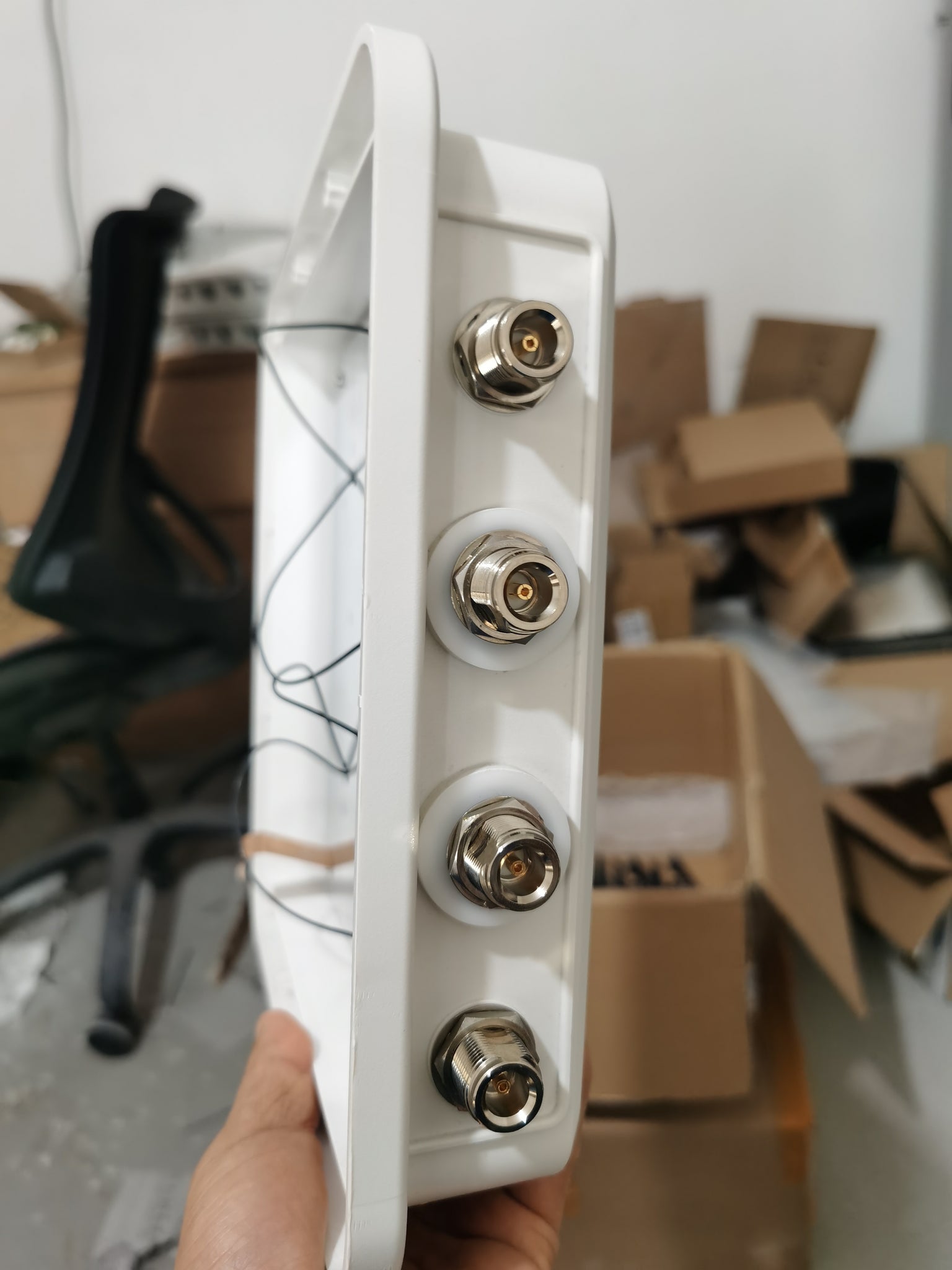

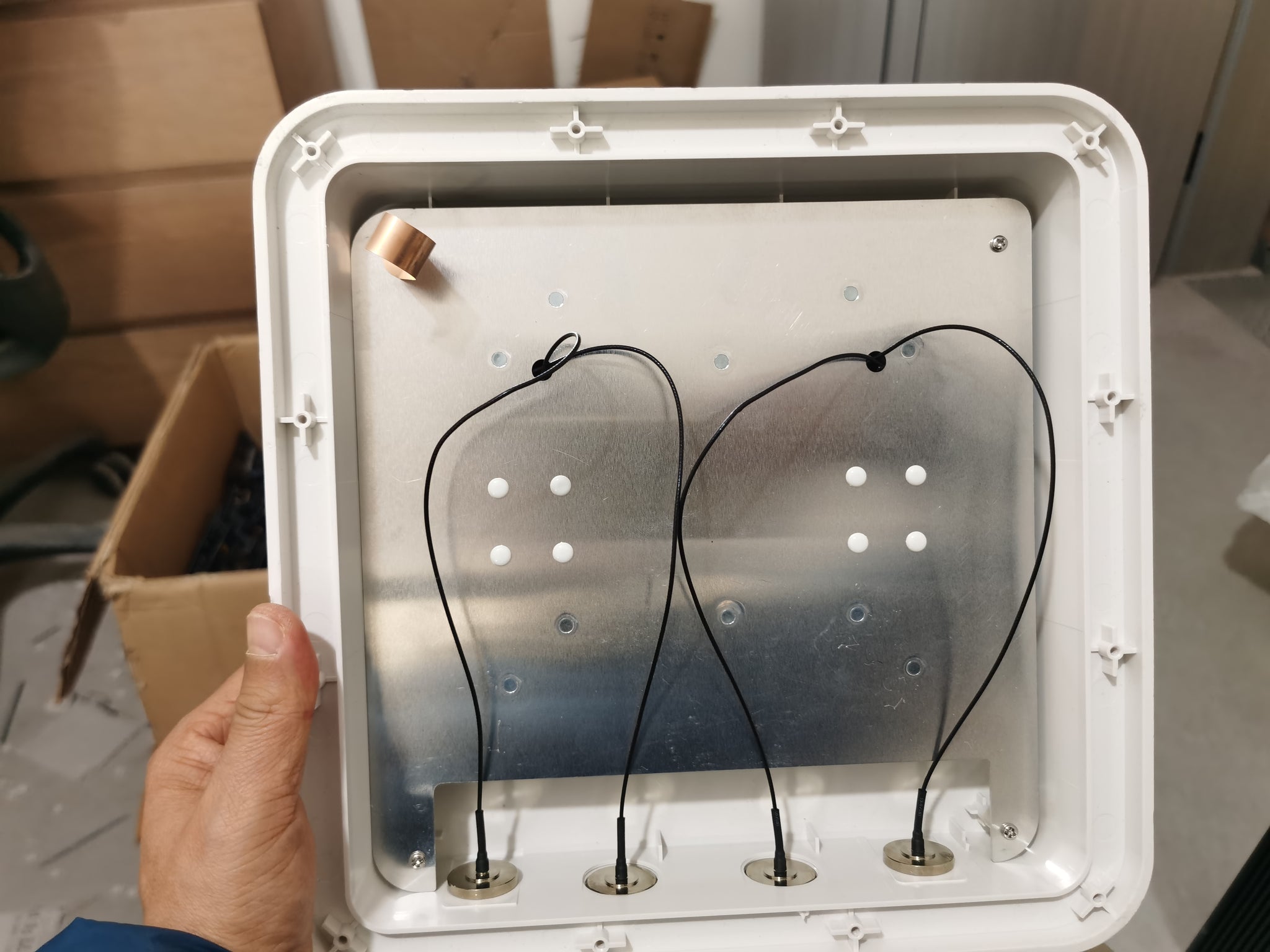

connector：N x4
total weight about 1.6kg
recommand use short cable ,The shorter the better
ship with UPS saver to US, CA, AU, EU (buyer need pay import tax)
