Brand New in original box
38dB Amplifier with integrated lightning protection

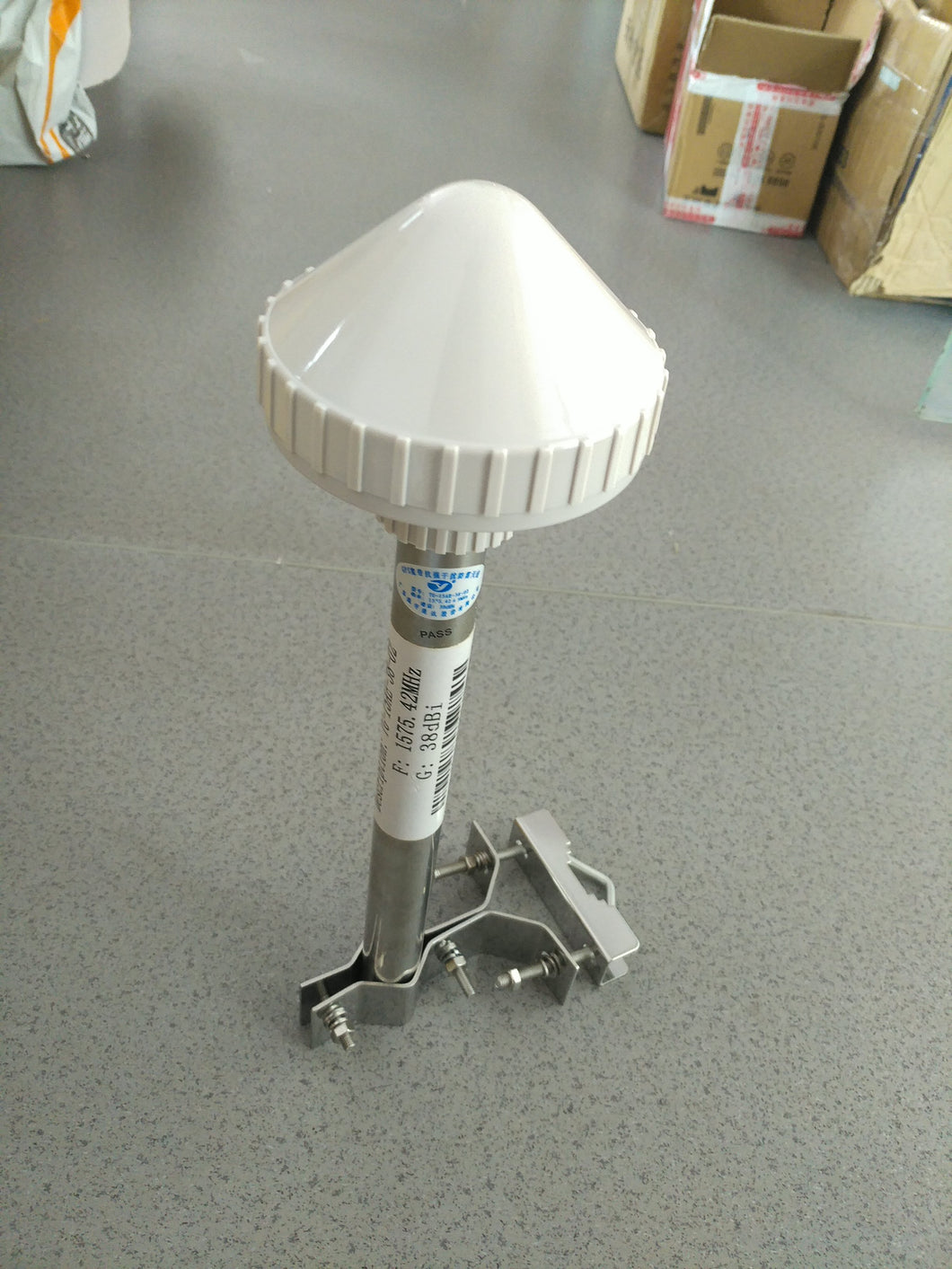

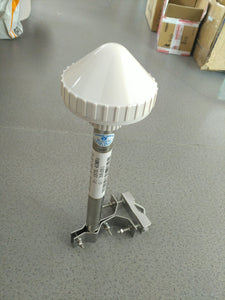

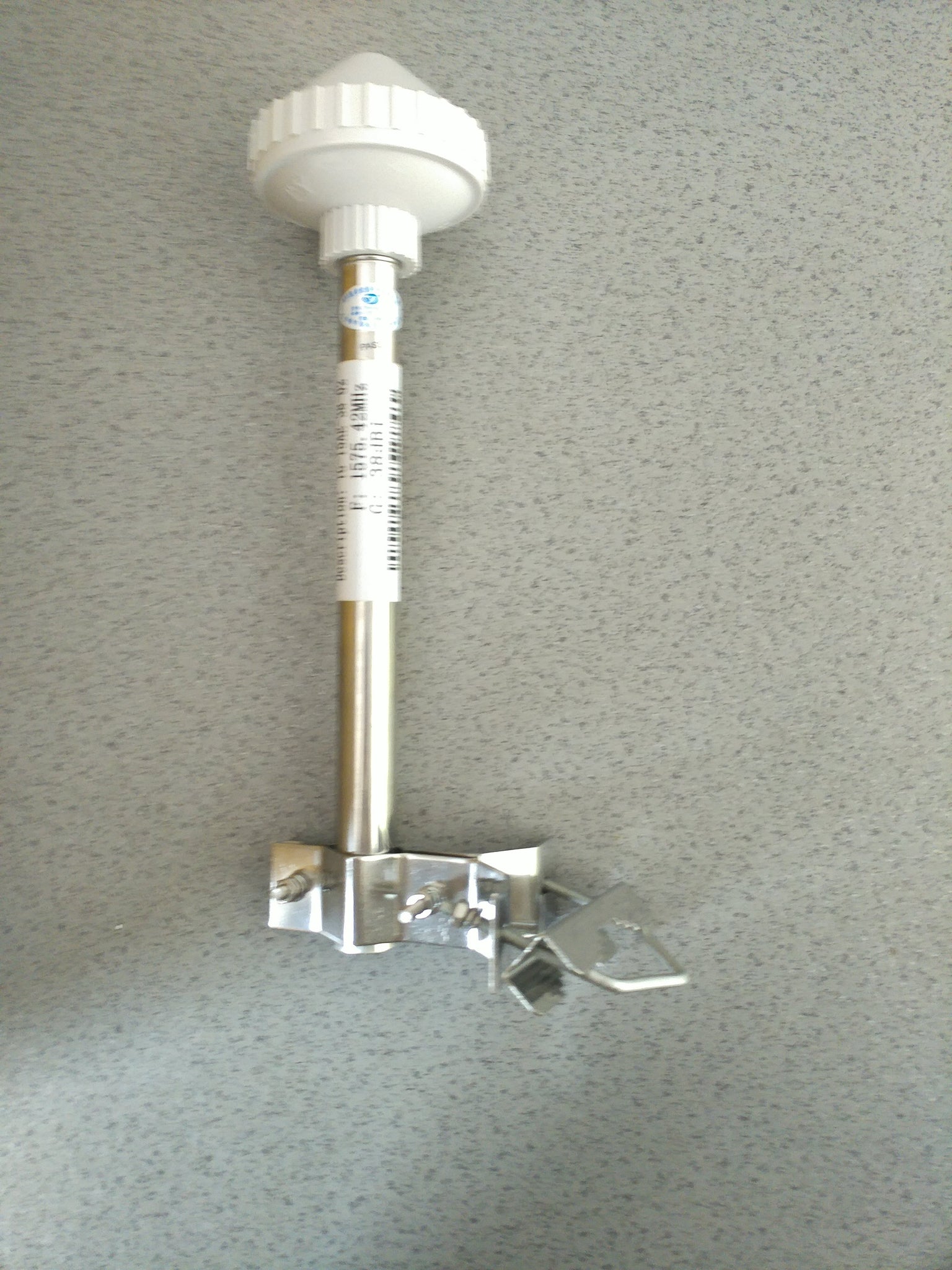

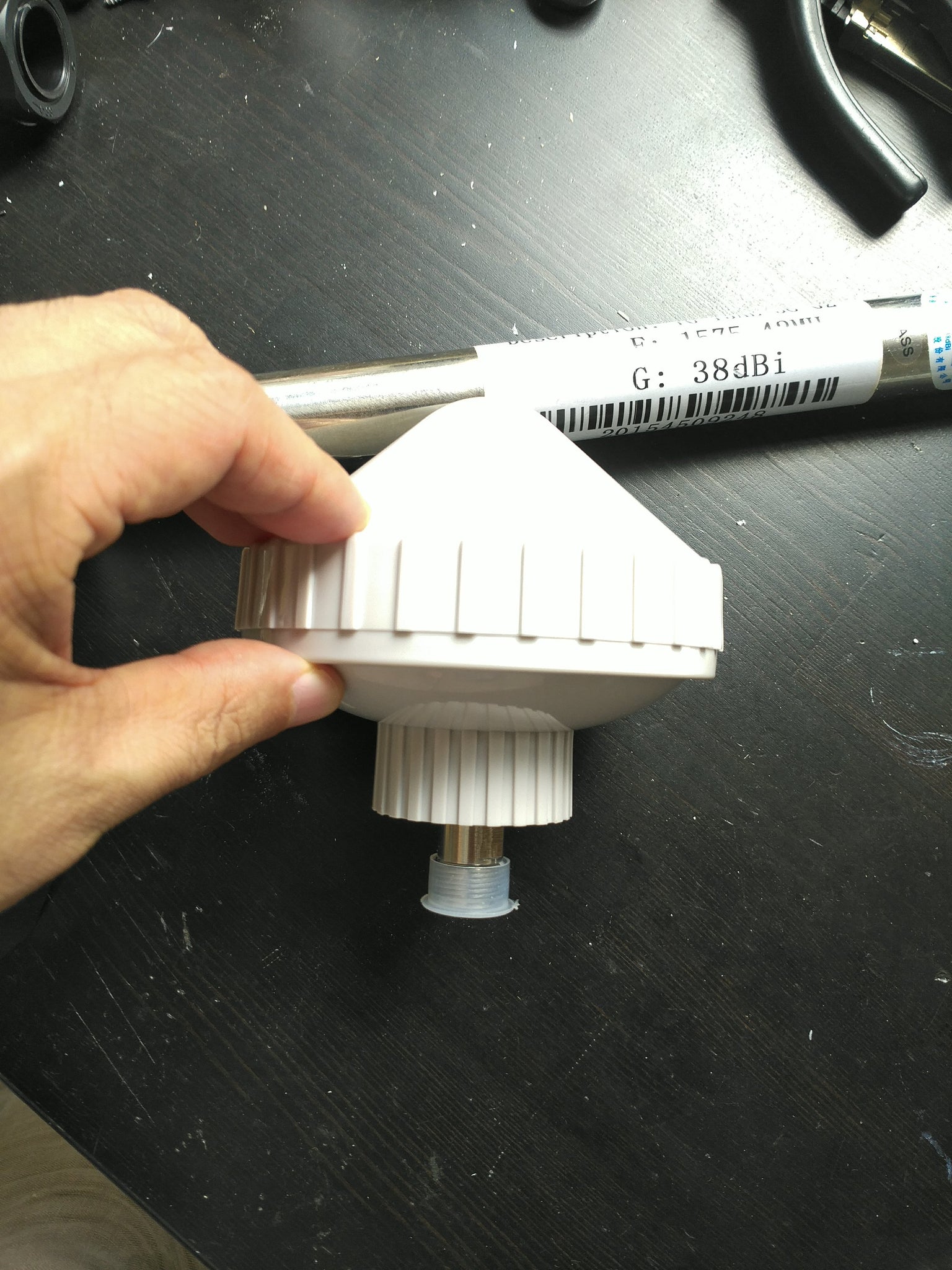

Electrical Specification -GNSS Antenna
Frequency:1575.42 ±5
Gain:38±2(include LNA)
Polarization: Right hand circular
Out of band Rejection:1575±30MHz ＞12
1575±50MHz ＞35
1575±100MHz ＞70
Noise Figure:1.9dB(typical) ＜2.5(high temperature)
Current Draw: 4-6V ≤45mA
Output Return loss:≥7.4dB
Nominal Impedance:50ohms
Dimensions:φ100X115mm
weight：0.7kg
Housing material： ASA
Lighting Protection:idt IEC 61000-4-5
Working temperature:-40~+75
Humidity:95%
include world wide shipping
