Dual-Q 5G-RGM-O for Quectel RGMII to RJ45 Outdoor unit include 4x4 directional antenna For DIY

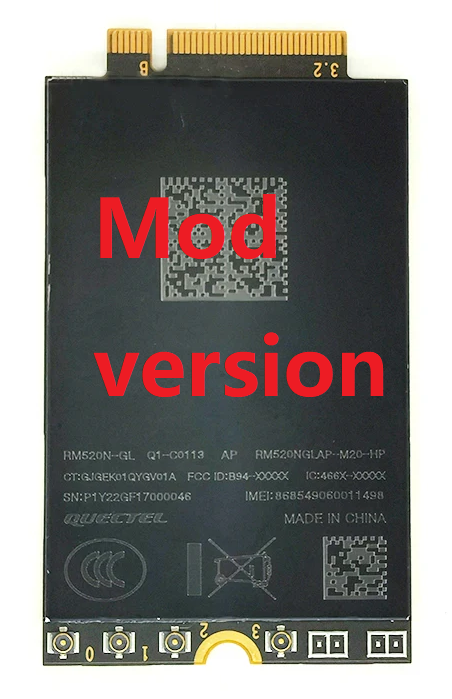

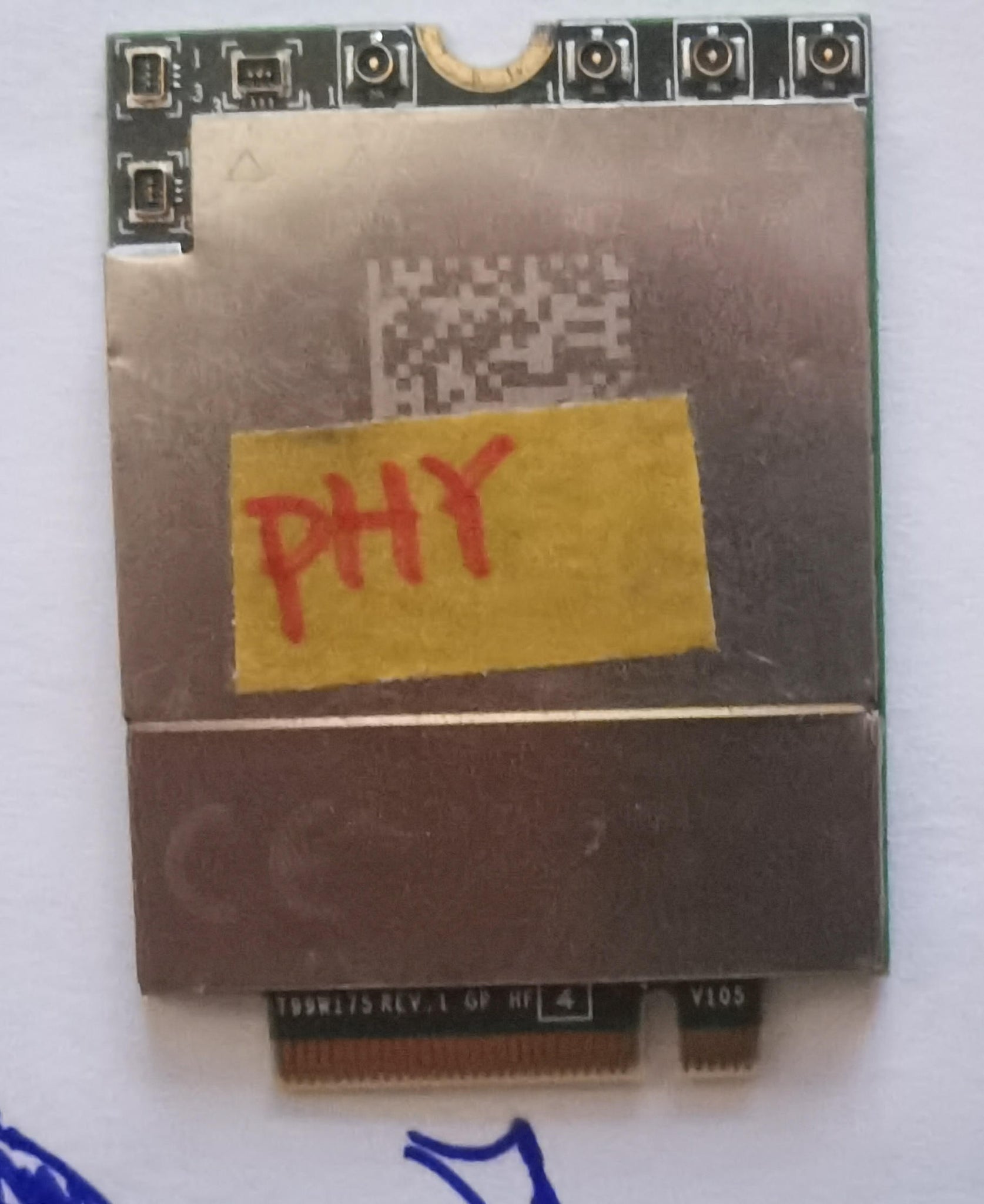

this unit design for Qualcomm RGMII to PHY , test with quectel RM500Q Rm502Q RM510Q Rm520N RM551e RM521F

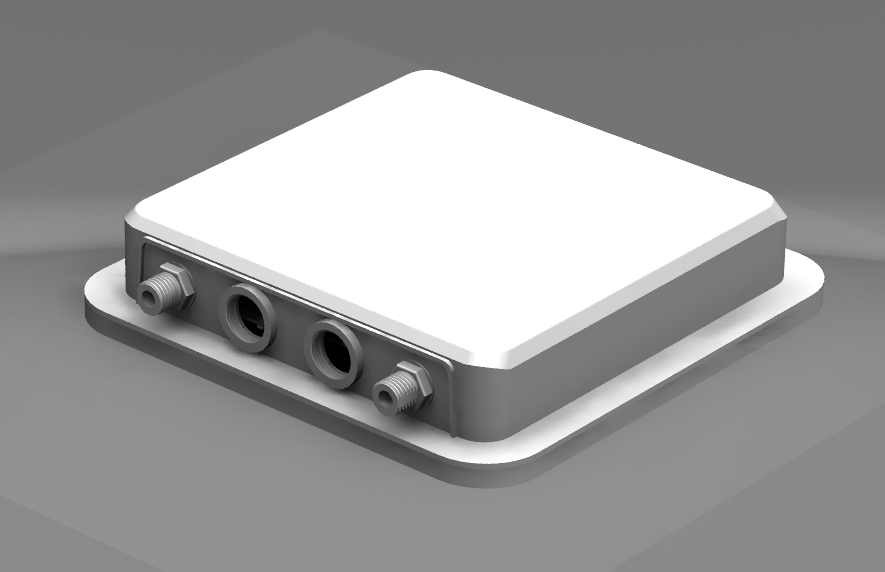

I find a good outdoor enclousre (HW B222s-42a), I want to reuse it as my water proof enclosure, it will let whole system easy and cost down.

make  a new 4x4 MIMO antenna, support from 600MHz-3800Mhz, frequency support 5Gnr N71 N1 N25 N41 N78  and LTE band1,2,3,4,5,8,25,26,38,40,41,66,71 , antenna VSWR test in below :

recommand you use webui and RGMII to PHY project https://github.com/iamromulan/quectel-rgmii-configuration-notes

bracket and bracket install:https://youtu.be/V3oawqFvF3U

I also put all CAD file  in cloud drive https://mega.nz/folder/WfxXSAgS#vaF2PLDu_oDHvvuRi5vyVA. you can use UE or  solidwork to check

I record a video how to install 5Gnr modem and RF connector at youtube for you reference :

https://youtu.be/d5wrexRW6w8

packing list:

router board*1;

water proof body case*1  (used have some scrtaches on the surface)

4x4 internal MIMO antenna

L bracket & accessories

2.5G 54V Power Over Ethernet adapter

ship with UPS to US CA AU , for EU I will ship with tracked parcel
