Dual-Q M.2 (NGFF) Key B to USB3.0 adapter MH2U V7 Enclosure with Sim Slot fit for 5GNR M.2 Quectel RM500Q Sierra EM9191 Fibocom L860

Regular price $120.00 $40.00 Sale

Description

V7 version

New feature:

A, add new PIN  to support Sierra wireless EM9190 EM9191 EM7690.

B, Add New PIN (PIN68) to support Fibocom L860 Antenna control ,to support 4x4 antenna mode.

C, 2 Step electric capacity at Output side,(input 16V 220μF,output 16V 220μF+6.3V 1000μF)

D, Adjust output to 3.8V. Prevent voltage drop when high data transfer .

E, adjust AUX input  (5V )

F,Immersion gold process at PCB, can conduct 5G modem heat to PCB

I do a loopback test with Quectel RM500U ipref3 ,can get 1.22Gbps download  throughput.  and 630Mbps upload speed. (last 2 picture)

It's 5Gnr  version, support New 5G M.2 size (52cm length) with 6 antenna hole

The USB3 to NGFF M.2 Key B adapter enclosure is a useful device for connecting a 4G  LTE M.2 (42mm length)& 5GNR  NGFF M.2 (52mm length modem card ( 5GNR M.2 modem Quectel RM500Q RM510Q simcom 8200 sierra wireless EM919x EM7690 ,and 4G M.2 Sierra Wireless EM series like EM7565, EM7455, EM73xx and Quectel EM06 EM20G EM12G ) Fibocom L860 L850 behind a PC or router via a USB port.

Main feature:
*Full-speed USB 3.0 data speed (4.8Gbps)  .
*Sim card(2FF full size)  ESD protection.

The adapter uses a full sized SIM Card .  Two MHF4 to SMA female bulkhead (1.13 cables) pigtails (to connect the M.2 modem to the antennas) are included.

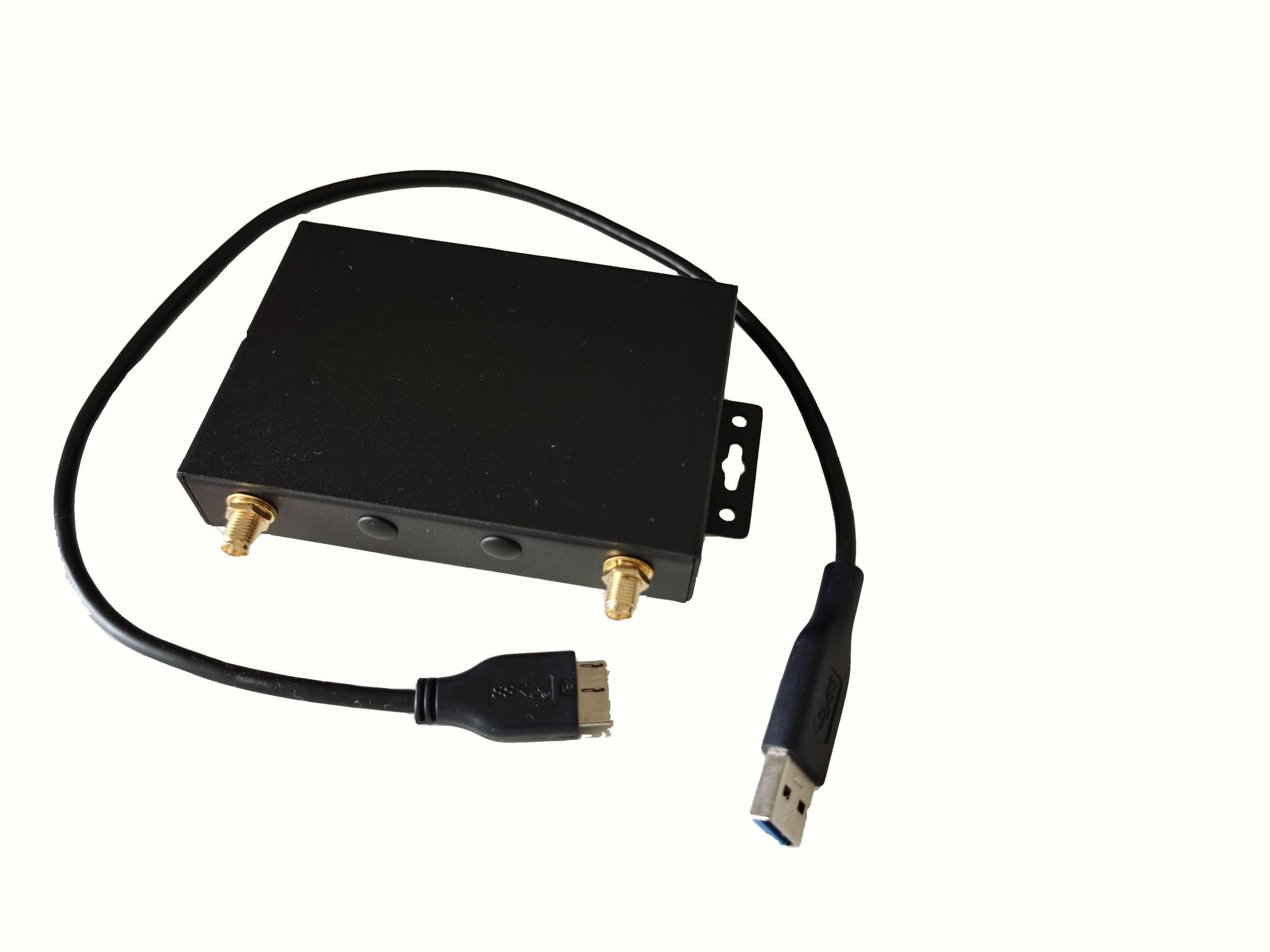

The USB 3.0 A Male to Micro-B Male plug provides a durable and solid connection to the enclosure.  The data power cable is 40cm long .

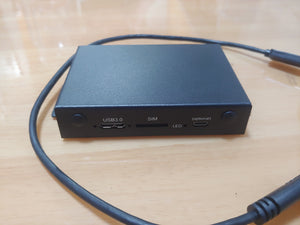

The enclosure is also equipped with an extra Micro USB power port for applications where additional (dual) power is required.

Aux DC input 5V input and 3.8V 3A output for M.2 device, use industry voltage regulator and capacitance to make 5GNR & 4G LTE modem work stable.


The enclosure can used on a desktop or mounted to a wall.

The metal body case is good for heat radiation.

    ship from China with China post tracked parcel
