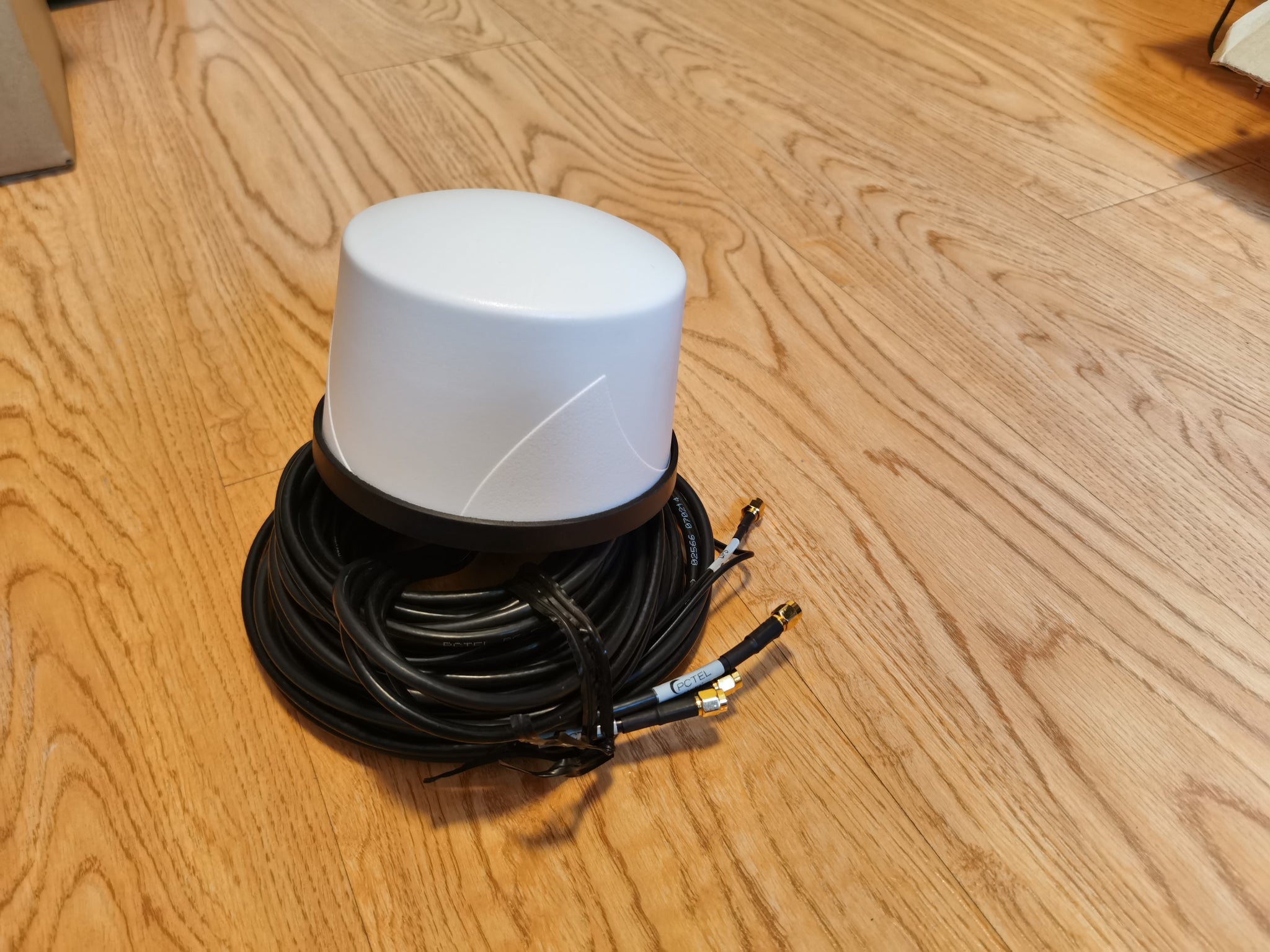

PCTEL’s LTE MIMO antennas provide optimal 4G LTE and dual-band 802.11ac Wi-Fi coverage in a single 5-port, low profile housing. The antennas also incorporate a high rejection GPS LNA assembly for optimal performance and support of carrier voice and data networks.
Features
- No tune, multiband coverage: dual 4G LTE, dual or triple 802.11ac Wi-Fi MIMO options and GPS L1 frequencies

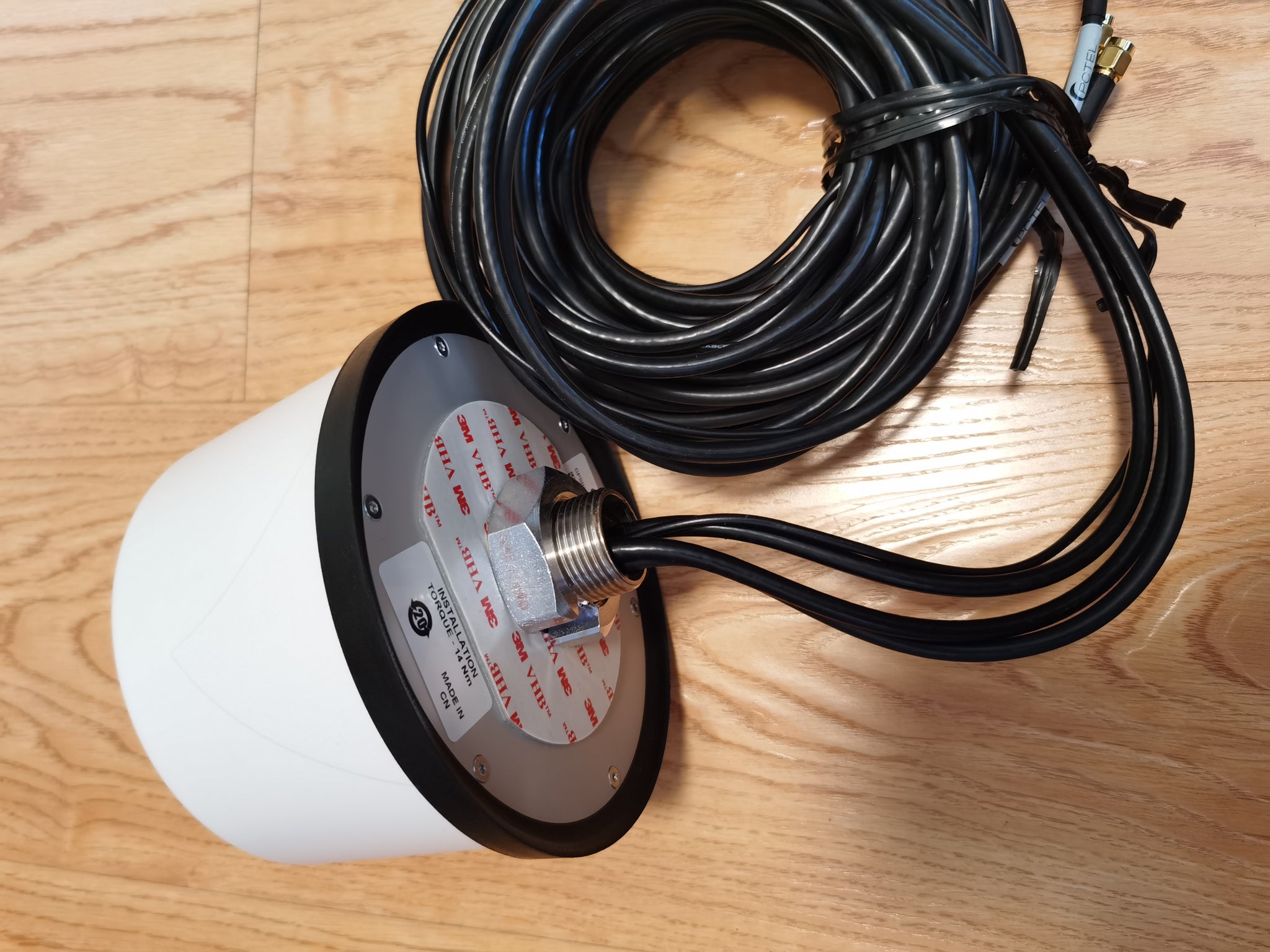

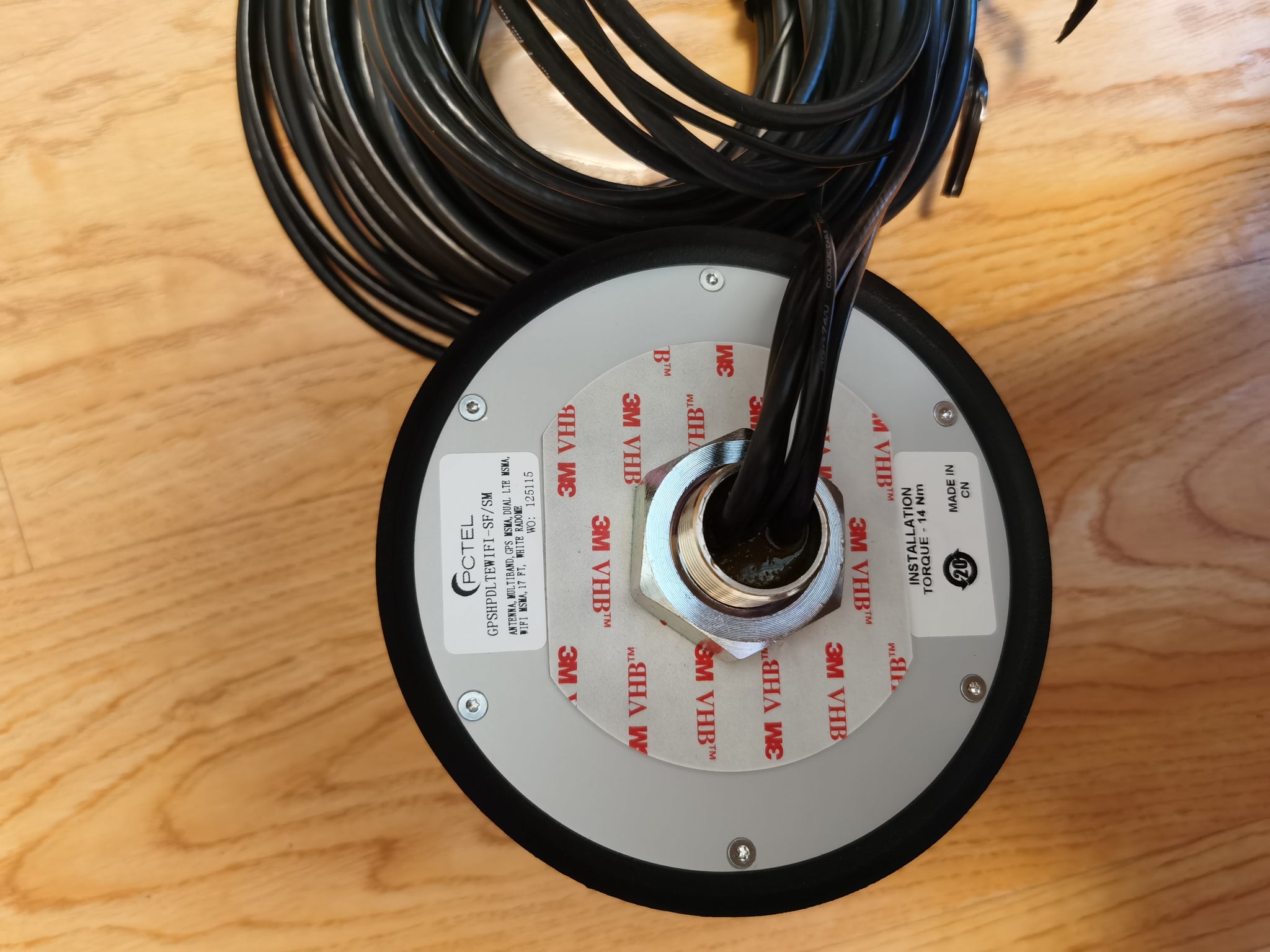

- Metal 1-inch stud mount with slotted jam nut provides single cable exit for easier installation and/or antenna replacement
- Attractive low profile housing for added overhead clearance
- IP67 compliant design provides maximum protection against water or dust ingress under severe environmental conditions
- High performance, low loss cable and high quality connectors for maximum RF system efficiency
- UV resistant black or white housing options complement most vehicular aesthetic requirements
Specifications
SKU |
GPSHPDLTEWIFISFSM |
Manufacturer Part Number |
GPSHPDLTEWIFI-SF/SM |
Manufacturer |
PCTEL |
Antenna Category |
Multi-Band (Cellular, WiFi, and/or GPS) |
Working Frequency |
698-960 MHz/ 1710-2700 MHz |
Gain |
2.5 dBi |
Working Frequency 2 |
2.4-2.5 GHz |
Gain 2 |
2 dBi |
Working Frequency 3 |
4.9-5.9 GHz |
Gain 3 |
3 dBi |
Antenna Style |
Multi Element/Band Antenna |
Polarity |
Vertical |
Bands |
Multi |
SISO or MIMO |
MIMO |
Directional or Omni |
Omnidirectional |
Impedance |
50 ohm |
Max Input Power (W) |
50 |
VSWR: < X: 1 |
< 2.0:1 |
Height/Length (inches) |
5.2 |
Height/Length (mm) |
132.08 |
Width (inches) |
3.4 |
Width (mm) |
86.36 |
Weight (lbs) |
2.5 |
Material |
UV-Stable Rugged Thermoplastics |
Operating Temp (celsius) |
-40°C to +85°C |
Mount Style |
Permanent |
Color |
white
|
Cable Length (inches) |
204 |
Cable Length (mm) |
5000 |
Connector 1 |
SMA-Male |
Connector 2 |
RP SMA-Male |
IP Rating |
IP67 |
OK for Outdoor Use |
Yes |
Vehicular |
Yes |
Ground Plane Required |
No |
Product Condition |
New |
