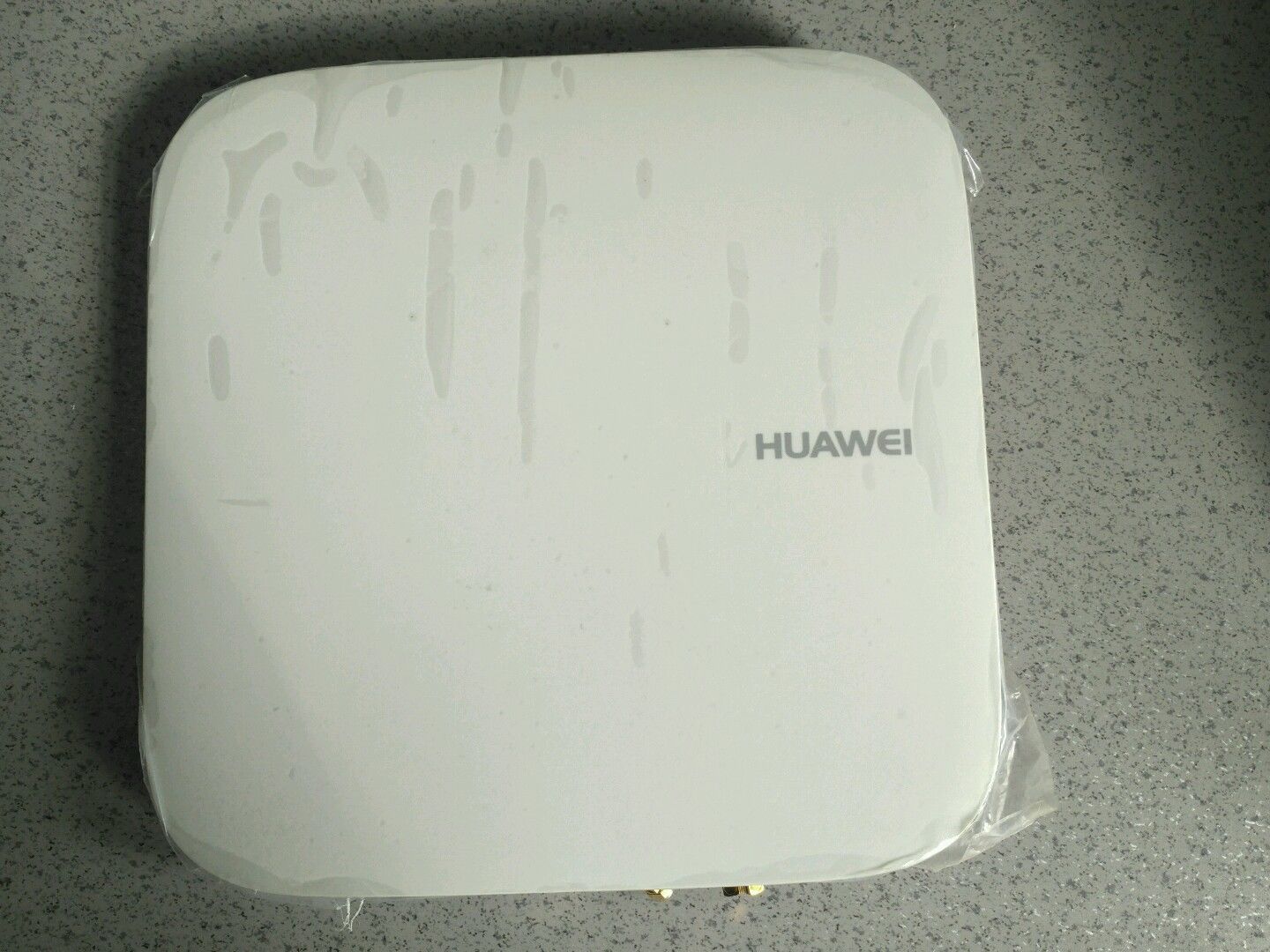

HUAWEI 4G LTE panel antenna fit for B593.B880.B890.B310,E5186 etc.

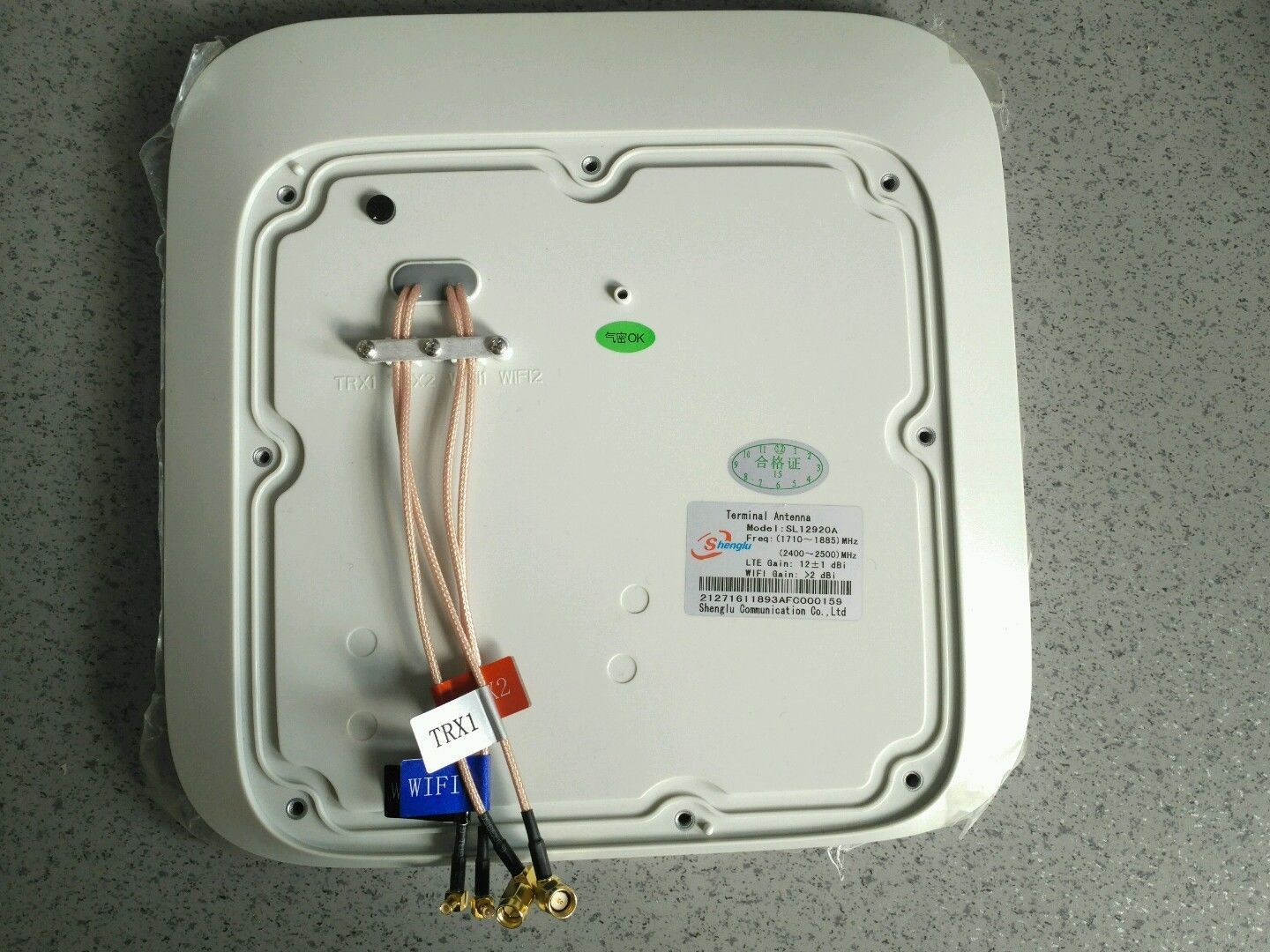

2 SMA connector for LTE, 2 MCX-M connectors for wifi ，
design for LTE B3 (1800MHz 12dBi gain )
without mounting kit
you need diy to install

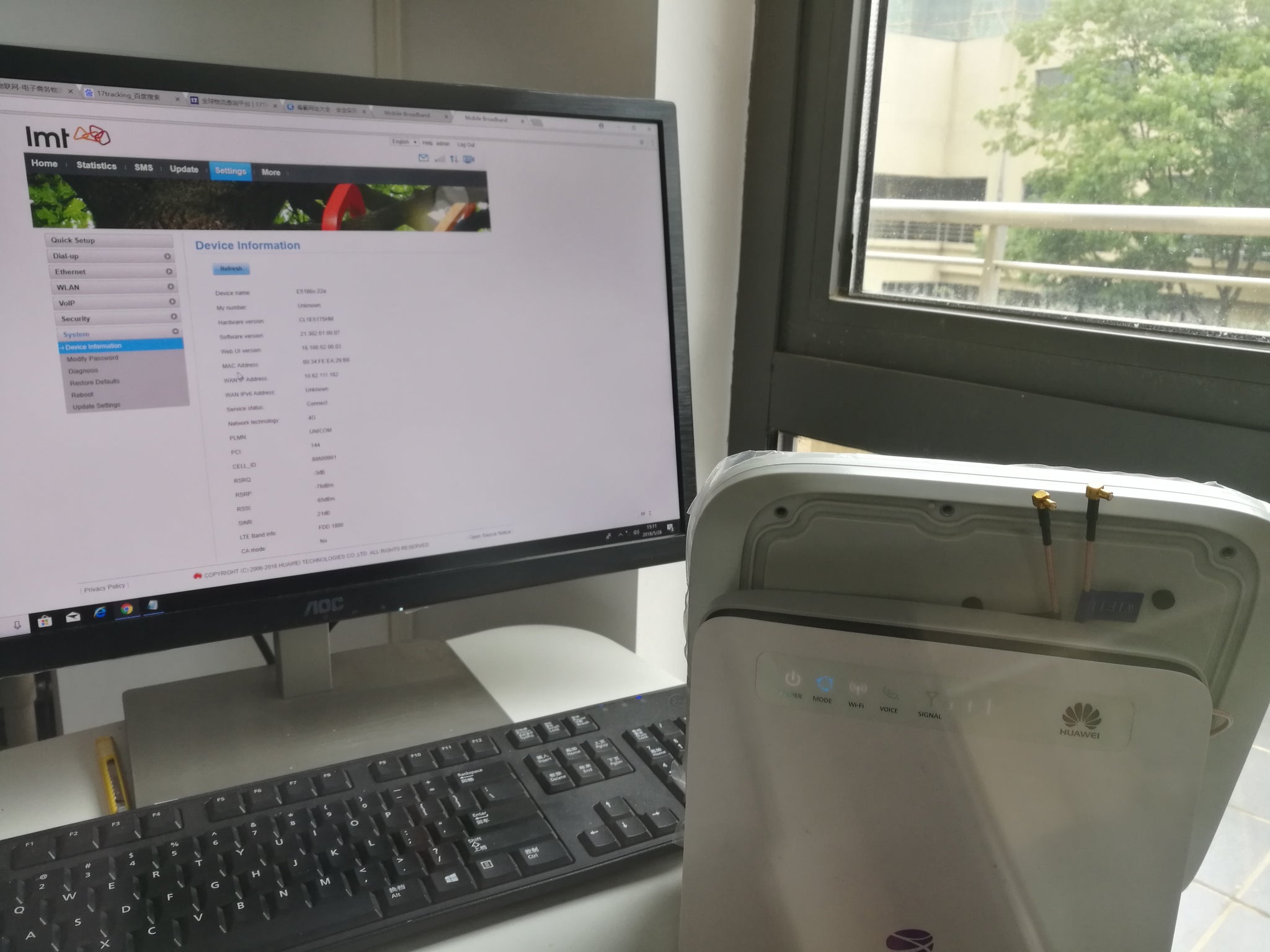

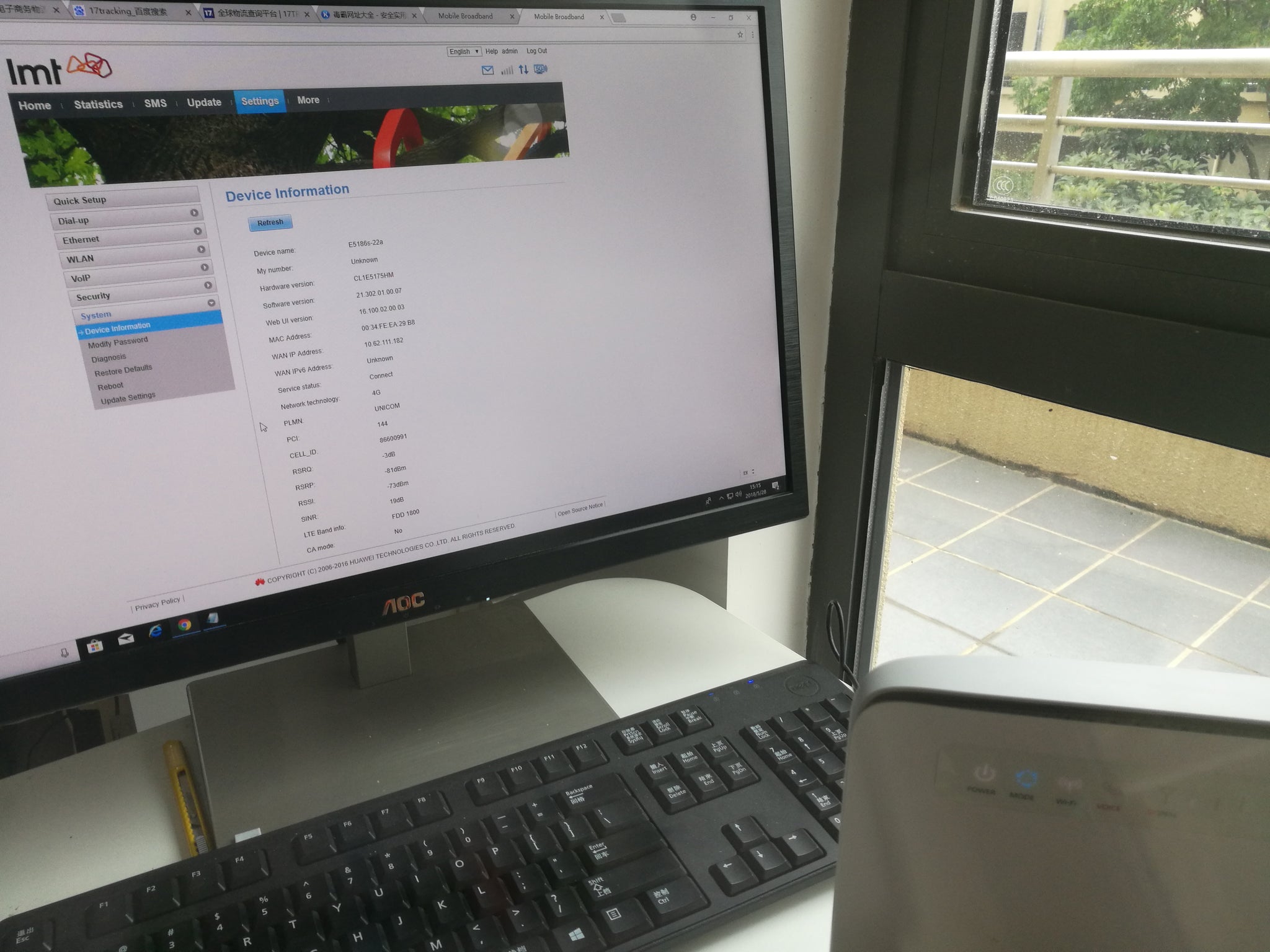

test the antenna with Huawei E5186，the signal is strenthened as shown in the picture and the data is below:
Before plug shenglu 1800 antenna
RSRQ: -3dB
RSRP: -81dBm
RSSI: -73dBm
SINR: 19dB
LTE Band info: FDD 1800
CA mode: No
After plug shenglu 1800 antenna
RSRQ: -3dB
RSRP: -76dBm
RSSI: -65dBm
SINR: 21dB
LTE Band info: FDD 1800
CA mode: No
